Classic Instruments Classic Truck Package Black CT64B

Classic Instruments Classic Truck Package Black CT64B
$1,647.99 ea
NEWARRIVING SOONEstimated Ship Date 07/17/2025 (If Ordered Today)
Model: 4954084
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

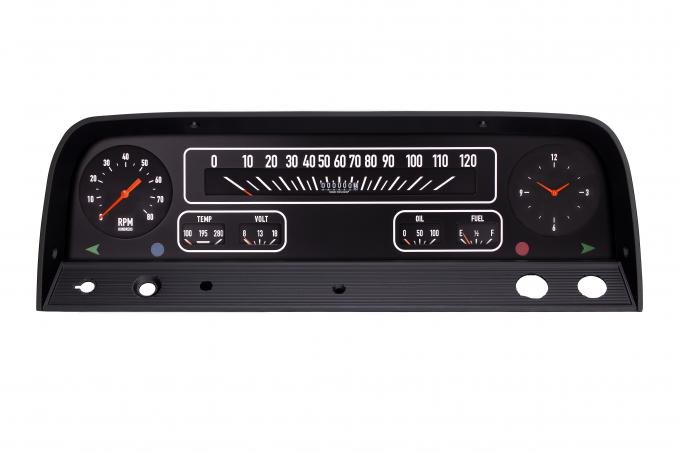

The 1964-66 Chevy truck direct-fit cluster features a speedometer, tachometer, fuel, oil, temperature, and volt gauges, and a 12V quartz clock decked out in one of four color schemes: black, tan, white, or Gray. Choose black for a near-stock appearance or select one of the other color options to match your project! The all-electric cluster with easy snap-in wiring harness arrives ready to install directly into the stock dash of 64-66 trucks; no cutting or alterations necessary. Perhaps the best install feature: the cluster includes Classic Instruments' Zeus Speedometer Technology™ built right in which means no external control boxes. It is designed to re-use the factory dash bezel, bezel not included, to maintain the original styling of the vehicle, but has been upgraded with bright LED lighting for even illumination and clear nighttime readability; light dimming control is built-in. Everything else needed to install the package is provided in the kit including a scratch-resistant acrylic lens and all necessary sending units. No need to worry about fuel sending unit compatibility either, the cluster features a fuel sending unit selector switch to set it for compatibility with the existing/factory fuel sending unit, no new sending unit necessary. **Dash bezel not included (uses original dash bezel)
Features:
  • Direct fit into the stock dashboard using factory holes with the included mounting hardware and a paint-to-match adapter ring
  • LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
  • Turn signal indicators in the left and right sides of cluster, green LEDs
  • High beam indicator hidden at the top of the tachometer, red LED HaloTM
  • Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

Downloads:

Download Name File Size
1964-1966_chevy_truck_installation_manual_revision_032620.pdf1.03MB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet C10 Panel Base 1964 3.8L / 230 / L6
Chevrolet C10 Panel Base 1965 3.8L / 230 / L6
Chevrolet C10 Panel Base 1966 4.1L / 250 / L6
Chevrolet C10 Pickup Base 1964 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet C10 Pickup Base 1965 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet C10 Pickup Base 1966 4.6L / 283 / V8
4.1L / 250 / L6
4.8L / 292 / L6
5.3L / 327 / V8
3.8L / 230 / L6
Chevrolet C20 Pickup Base 1964 4.8L / 292 / L6
4.6L / 283 / V8
3.8L / 230 / L6
Chevrolet C20 Pickup Base 1965 4.8L / 292 / L6
4.6L / 283 / V8
3.8L / 230 / L6
Chevrolet C20 Pickup Base 1966 4.8L / 292 / L6
5.3L / 327 / V8
4.1L / 250 / L6
4.6L / 283 / V8
Chevrolet C30 Panel Base 1964 3.8L / 230 / L6
Chevrolet C30 Panel Base 1965 3.8L / 230 / L6
Chevrolet C30 Panel Base 1966 4.1L / 250 / L6
Chevrolet C30 Pickup Base 1964 3.8L / 230 / L6
4.6L / 283 / V8
4.8L / 292 / L6
Chevrolet C30 Pickup Base 1965 3.8L / 230 / L6
4.6L / 283 / V8
4.8L / 292 / L6
Chevrolet C30 Pickup Base 1966 4.6L / 283 / V8
4.8L / 292 / L6
5.3L / 327 / V8
4.1L / 250 / L6
Chevrolet K10 Pickup Base 1964 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet K10 Pickup Base 1965 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet K10 Pickup Base 1966 5.3L / 327 / V8
4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
4.1L / 250 / L6
Chevrolet K20 Pickup Base 1964 4.8L / 292 / L6
3.8L / 230 / L6
4.6L / 283 / V8
Chevrolet K20 Pickup Base 1965 4.8L / 292 / L6
3.8L / 230 / L6
4.6L / 283 / V8
Chevrolet K20 Pickup Base 1966 4.1L / 250 / L6
4.8L / 292 / L6
5.3L / 327 / V8
4.6L / 283 / V8
Chevrolet Suburban Base 1964 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet Suburban Base 1965 4.6L / 283 / V8
4.8L / 292 / L6
3.8L / 230 / L6
Chevrolet Suburban Base 1966 4.1L / 250 / L6
4.6L / 283 / V8
5.3L / 327 / V8
4.8L / 292 / L6
3.8L / 230 / L6

Specifications:

Application 1964-1966 Chevy Truck
Bezel Included No
Emission Code 6
Finish Black
Manufacturer Part Number CH49B
Part Type Gauge Set
Product Type Gauge Set
Proposition 65 www.P65Warnings.ca.gov
