Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 3/4" Long Tube Chevy Small Block 265/283 Engine Swap Header D353

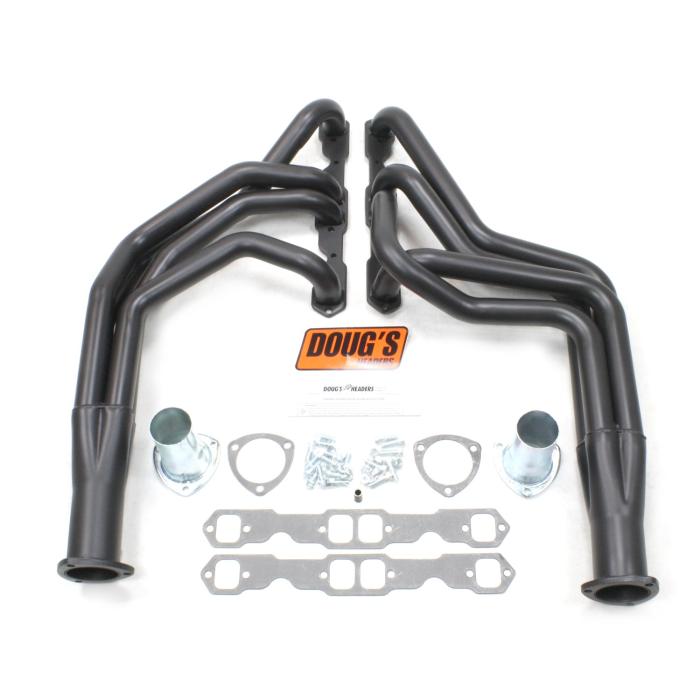

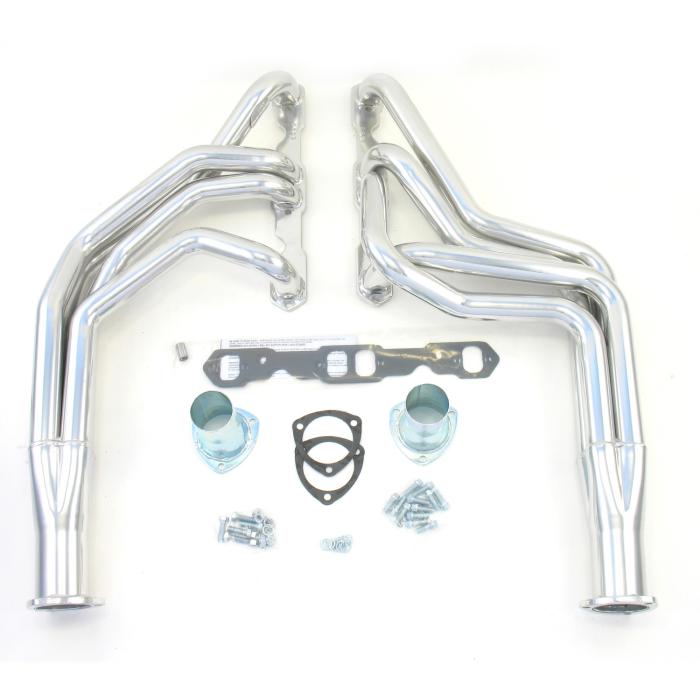

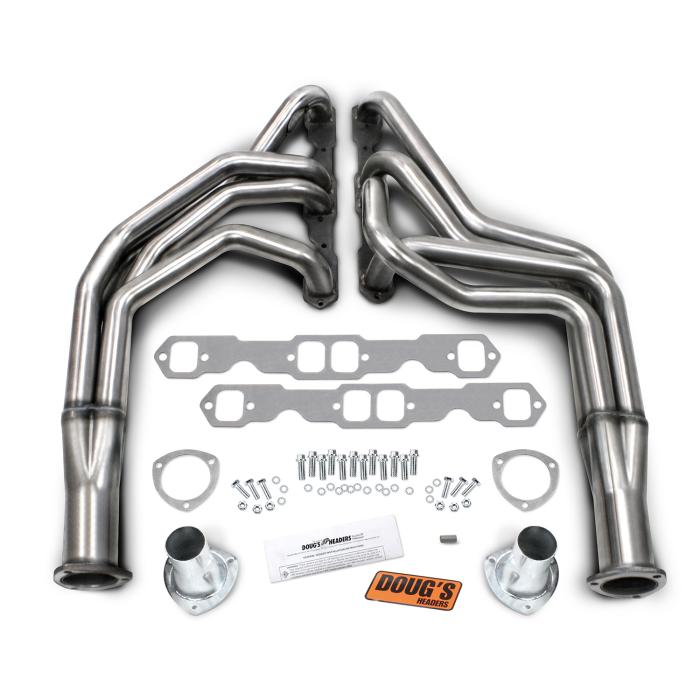

Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 3/4" Long Tube Chevy Small Block 265/283 Engine Swap Header D353
Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 3/4" Long Tube Chevy Small Block 265/283 Engine Swap Header D353Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 3/4" Long Tube Chevy Small Block 265/283 Engine Swap Header D353
from $1,591.71 st

Available Options

*
Model: 5124733
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SELECT
OPTIONS
STORE PICKUP
[More Info]
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.
Features:
  • 3/8" Thick machined flanges to prevent warping
  • Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
About Doug's Headers

Doug's Headers are a fixture in the motorsports aftermarket, pioneering quality muscle car performance headers for decades. Unlike the competition, Doug's Headers prides ourselves on superior design detail resulting in a hassle-free installation for any application.

Downloads:

Download Name File Size
D353.pdf335.32KB
D353-B.pdf335.32KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Bel Air 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Bel Air 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Bel Air 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet One-Fifty Series 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet One-Fifty Series 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet One-Fifty Series 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Sedan Delivery 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Sedan Delivery 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Sedan Delivery 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Two-Ten Series 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Two-Ten Series 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length
Chevrolet Two-Ten Series 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will fit with 605 power steering box.
Does not fit with power glide transmission.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Fits with Danchuk 12184, 17757 or 16639 & CCP 5557SMF-SB 3/4" Motor Mount kits
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Full-length

Specifications:

Collector Attachment 3-Bolt Flange
Collector Diameter 3.0 IN
Collector Port Diameter 3.0 IN
Cylinder Head Port Shape SAP
Design Full-length
Flange Thickness 0.375 IN
Gasket Or Seal Included Yes
Gaskets Included Yes
Grade Type Performance
Header Style Full-length
Mounting Hardware Included Yes
Oxygen Sensor Port No
Part Type Exhaust Header
Port Shape SAP
Primary Tube Outside Diameter 1.75 IN
Proposition 65 www.P65Warnings.ca.gov
Tube Wall Thickness 16 GU
Warranty Time 24 Months
