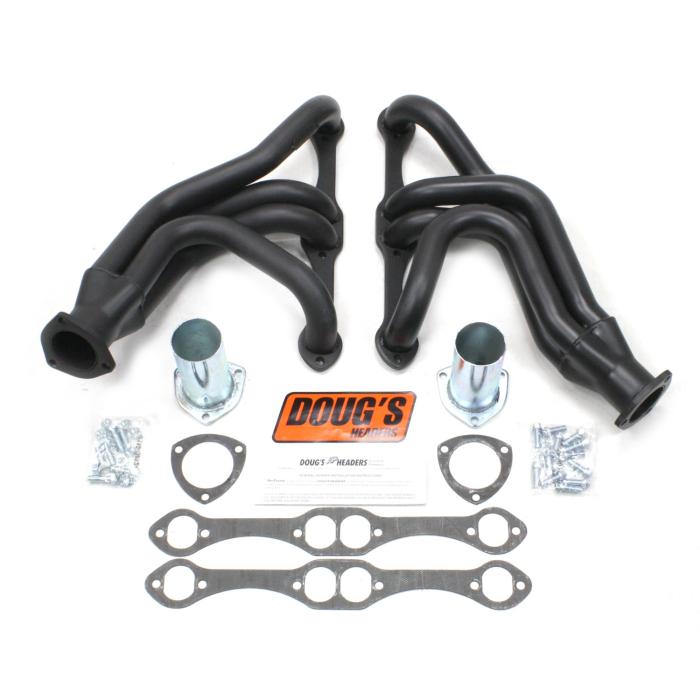

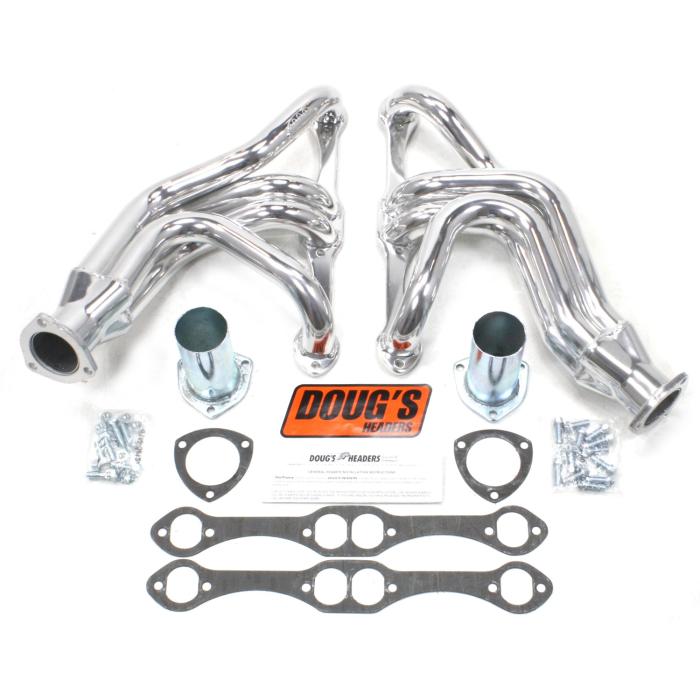

Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 5/8" Mid-Length Chevy Small Block 265/283 Engine Swap Header D356

Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 5/8" Mid-Length Chevy Small Block 265/283 Engine Swap Header D356
Doug's Headers 1955-57 Chevy Passenger Car/Wagon 1 5/8" Mid-Length Chevy Small Block 265/283 Engine Swap Header D356
from $1,530.54 st

Available Options

*
Model: 5124736
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SELECT
OPTIONS
STORE PICKUP
[More Info]
Mid-Length Headers, often called Clipsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicles's horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low.
Features:
  • 3/8" Thick machined flanges to prevent warping
  • CNC mandrel bent tubes for ensuring accurate fit and optimal flow
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
About Doug's Headers

Doug's Headers are a fixture in the motorsports aftermarket, pioneering quality muscle car performance headers for decades. Unlike the competition, Doug's Headers prides ourselves on superior design detail resulting in a hassle-free installation for any application.

Downloads:

Download Name File Size
D356.pdf335.29KB
D356-B.pdf335.29KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Bel Air 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Bel Air 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Bel Air 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet One-Fifty Series 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet One-Fifty Series 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet One-Fifty Series 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Sedan Delivery 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Sedan Delivery 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Sedan Delivery 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Two-Ten Series 1955 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Two-Ten Series 1956 4.3L / 265 / V8 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length
Chevrolet Two-Ten Series 1957 4.6L / 283 / V8
4.3L / 265 / V8		 Fits most angle plug heads.
Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent
Original bellhousing frame mounts must be removed.
Will not work with Column Shift manual trans.
Will fit with 605 power steering box.
Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
Mid Length

Specifications:

Collector Attachment 3-Bolt Flange
Collector Diameter 2.5 IN
Collector Port Diameter 2.5 IN
Cylinder Head Port Shape Oval
Design Mid Length
Flange Thickness 0.375 IN
Gasket Or Seal Included Yes
Gaskets Included Yes
Grade Type Performance
Header Style Mid Length
Mounting Hardware Included Yes
Oxygen Sensor Port No
Part Type Exhaust Header
Port Shape Oval
Primary Tube Outside Diameter 1.625 IN
Proposition 65 www.P65Warnings.ca.gov
Tube Wall Thickness 16 GU
Warranty Time 24 Months
