Holley Sniper Returnless 255LPH In-Tank Fuel Module

Holley Sniper Returnless 255LPH In-Tank  Fuel Module
Holley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel ModuleHolley Sniper Returnless 255LPH In-Tank  Fuel Module
$1,565.99 kt
NEWARRIVING SOONEstimated Ship Date 05/06/2024 (If Ordered Today)
Model: 3148220
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

KEY FEATURES &amp BENEFITS:
  • 255LPH EFI Returnless In-Tank Fuel Pump Module Conversion Kit
  • Eliminates The Need For A Return Line And Conventional Fuel Pressure Regulator.
  • The Easiest Way To Convert Your Vehicle To An In-Tank, EFI Fuel System
  • Installs In Any Fuel Tank From 7.25" To 12" Deep To Fit A Wide Variety Of Applications
  • The Low Profile Design Is Only 1.275" Thick Above The Tank Mounting Surface For Added Clearance When Needed

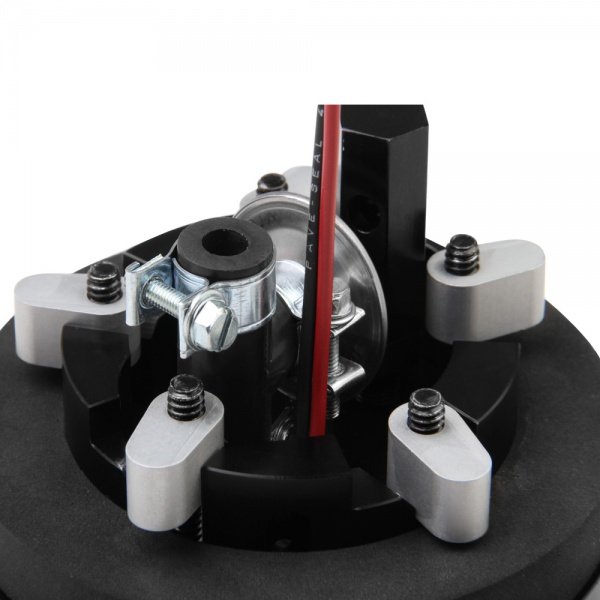

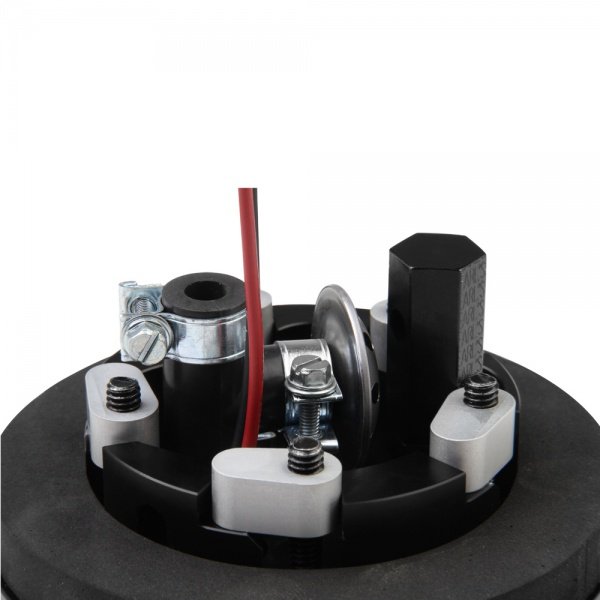

  • The Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
  • The Clamping System Allows You To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride

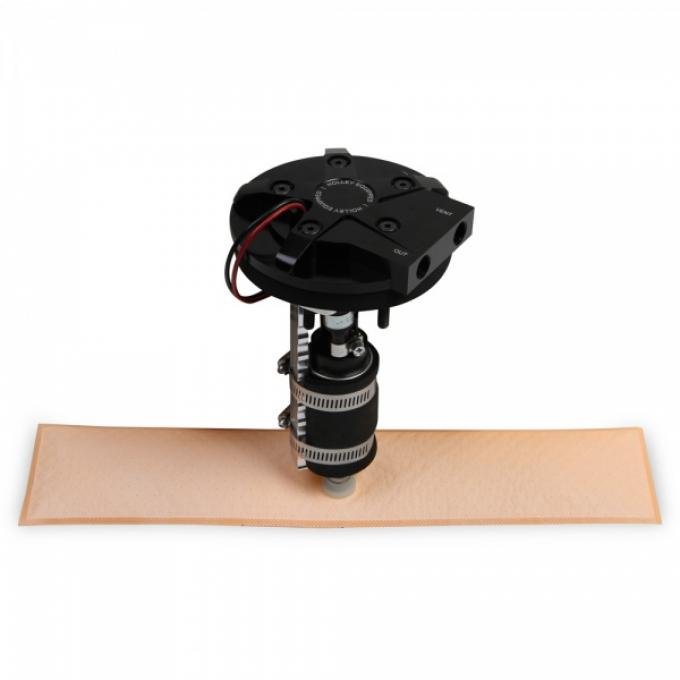

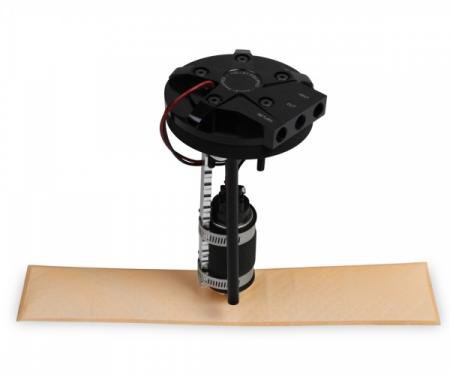

  • Includes Innovative Holley Hydramat To Ensure Consistent Fuel Supply. The 3"x15" HydraMat Mounting Flange Has 6 Clocking Pin Locations To Allow For 360 Degree Adjustment To Clear Sending Unit Levels Or Any Tank Floor Restrictions That You Might Encounter
  • Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks
  • 1/4" NPT Ports For A Wide Variety Of Plumbing Applications
  • Ideal For ANY EFI Conversion
  • Notes: Installation Requires The Following Items Which Are NOT Included - Holley HP Billet Filter or Equivalent, Fuel Hose &amp Fittings (Threads In Pump Are 1/4" NPT), &amp Relay Kit (30 AMP With A Minimum Of 12 Gauge Wire).

SPECIFICATIONS:
  • Quality Level: High Performance Upgrade
  • Sending Unit Included: No
  • Flow Rate: 255 LPH (Liters Per Hour)
  • Max Pressure: 60 PSI
  • Max HP Supported: 550HP (EFI) or 700HP (Carbureted) @ 60 PSI at 13.5 Volts / 10.4 AMP Draw
  • Fuel System Type: Return Style Only
  • Works With Return Fuel Systems: No
  • Inlet Size &amp Outlet Size 1/4 In. NPT
  • Inlet &amp Outlet Quantity: One
  • Inlet &amp Outlet Attachment: Female Threads
  • Dimensions: Fits Fuel Tanks From 7.25" to 12" Deep.
  • What's In The Box: 255LPH Fuel Pump, Internal Fuel Pressure Regulator Preset At 60 PSI, Fuel Pump Hanger Assembly, Foam Gasket Ring, 24" Long Foam Spacer Strips, Pump Clamps, Hose Clamps, Fuel Pump Module, 3" x 15" Holley HydraMat, Installation Instructions
  • Where It's Made: USA
  • Manufacturer Limited Warranty: 90-Day
  • Product Weight: 3.5lbs.
  • Product Dimensions: 18.25" x 5.88" x 6.06"
  • Approx. Installation Time: 4-5 Hours, Experienced Mechanic Times Quoted, Yours May Take Longer
  • Installation Difficulty: Difficult, Seek Professional Installation

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Bel Air 1958 - 1981
Chevrolet Biscayne 1958 - 1972
Chevrolet Caprice 1966 - 1985
Chevrolet Estate 1969 - 1970
Chevrolet Impala 1958 - 1985
Chevrolet Nomad 1958 - 1960
Chevrolet Parkwood 1959 - 1960
Chevrolet Townsman 1969 - 1972
