Holley Aluminum Fuel Cell 5 Gallon 19-201

Holley Aluminum Fuel Cell 5 Gallon 19-201
Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201Holley Aluminum Fuel Cell 5 Gallon 19-201
$367.99 ea
NEWARRIVING SOONEstimated Ship Date 12/23/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/05/2024
Model: 4951833
STANDARD
DELIVERY
STORE PICKUP
[More Info]

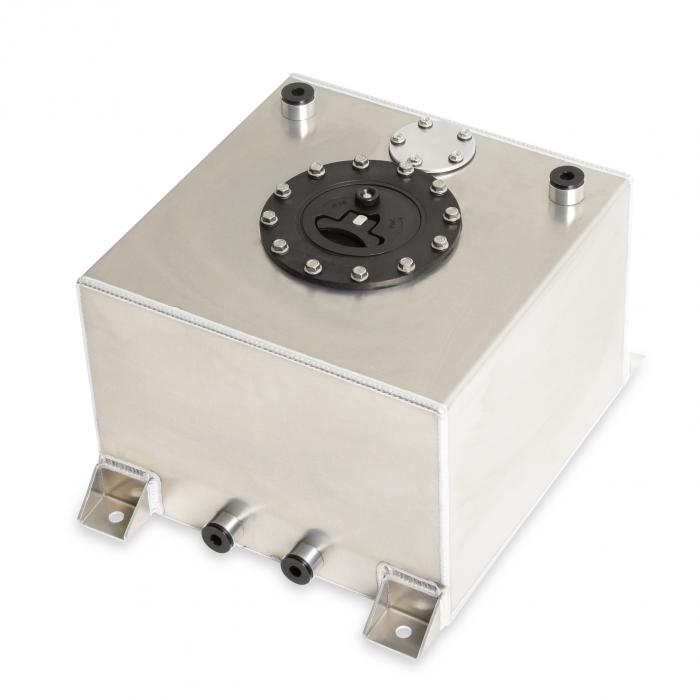

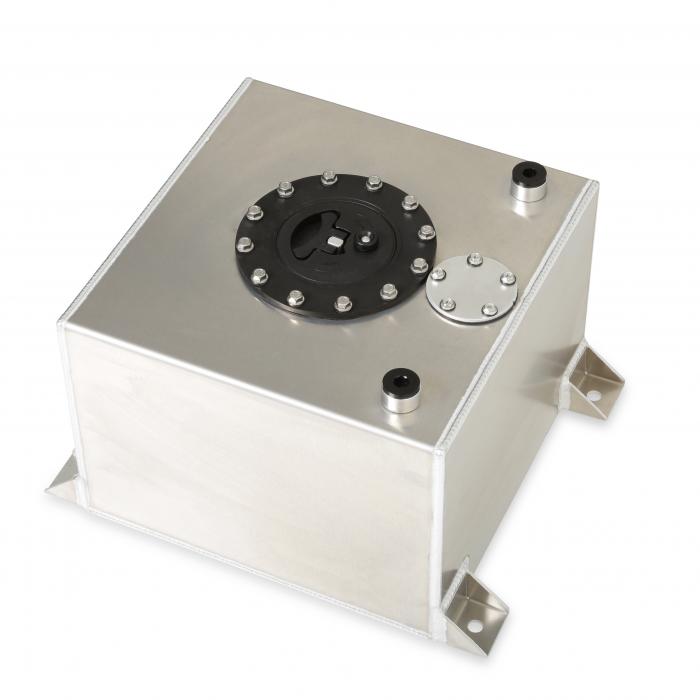

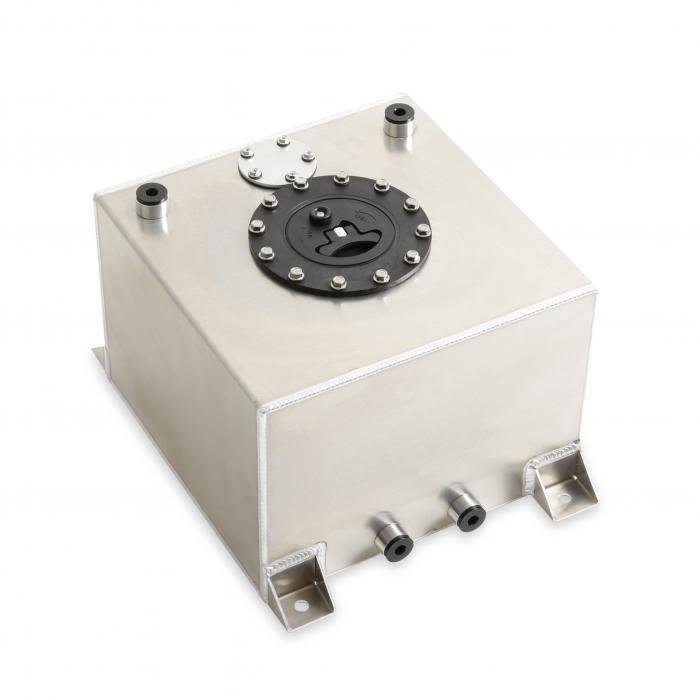

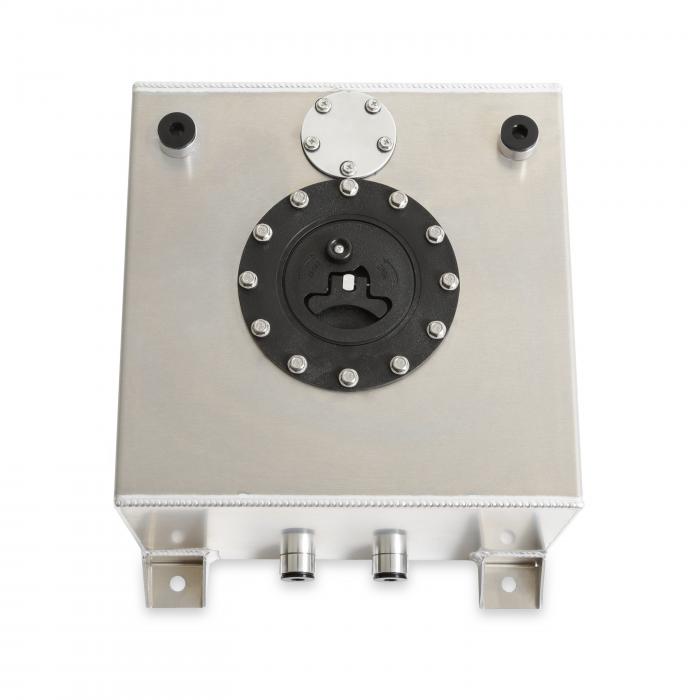

Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.
Features:
  • Available in 3, 5, 10, 15 and 20-gallon tank sizes
  • Offered in both flat bottom or rear sump to help prevent fuel starvation
  • -10AN ORB ports (feed, return, vent) for high flow
  • Readily adaptable -10AN ORB ports to -6AN, -8AN and -12AN avoids cutting and re-welding male weld bungs

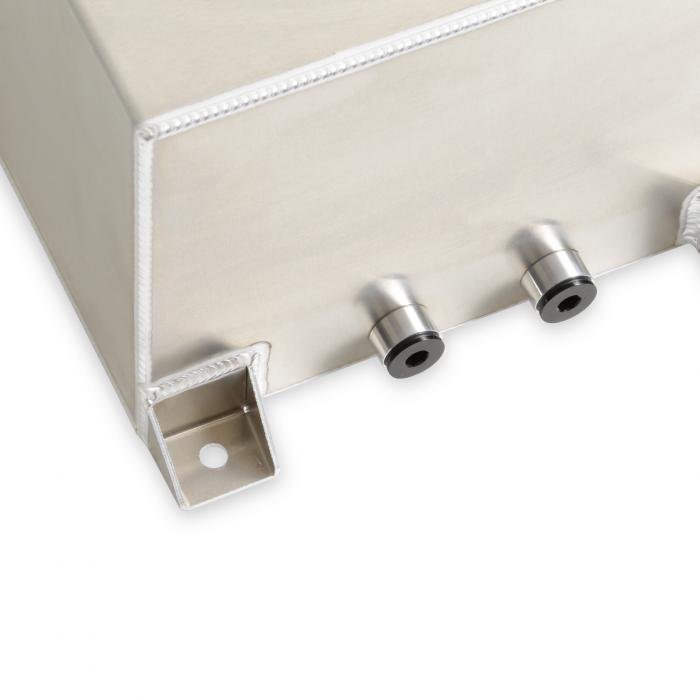

  • ORB ports are welded from the inside for a clean look
  • Made from 2.5mm thick 5052 aluminum
  • Fully TIG welded
  • Modular design to be easily upgraded gives customer flexibility to add options to suit their needs
  • Anti-slosh foam included and pre-cut to clear fuel level sender *NOTE: foam is not E85 compatible*
  • Pre-welded triangulated mounted tabs for added support and easy installation

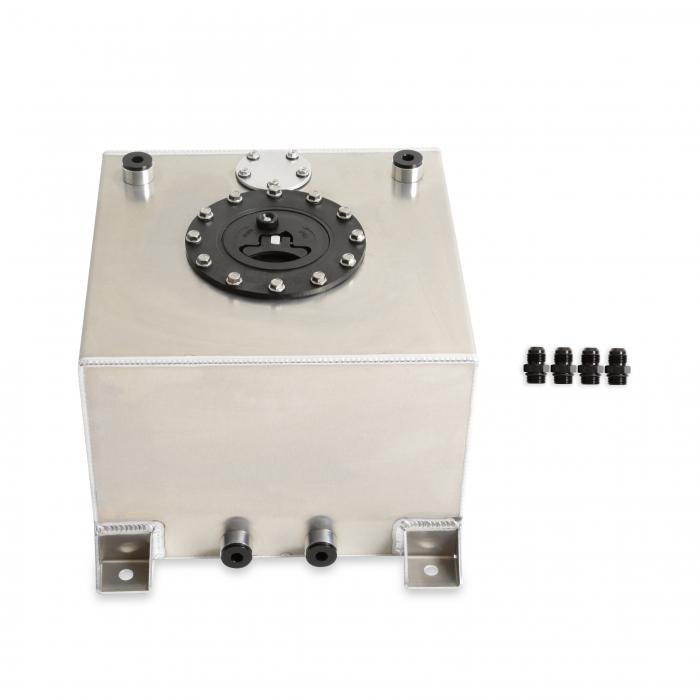

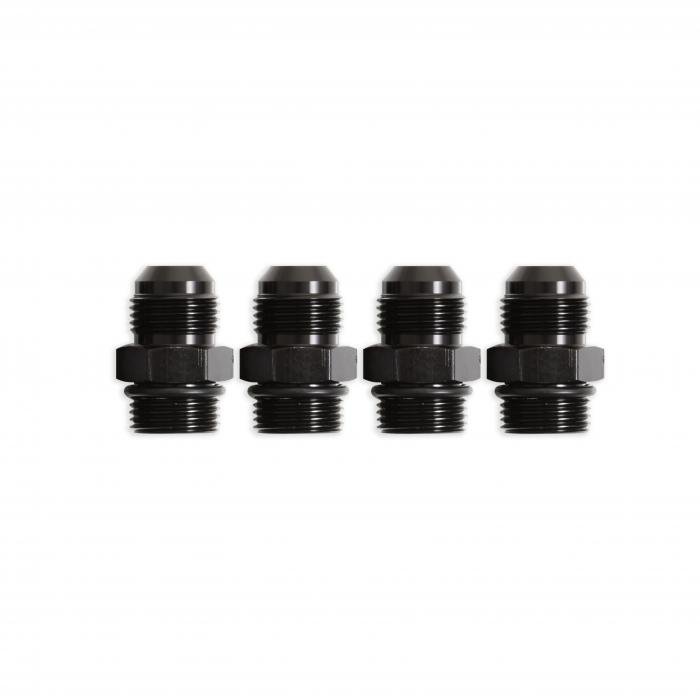

  • Includes flush-mount aircraft-style cap, fuel sender block-off plate, -10AN plugs and -10AN male adapters
  • 12-bolt flush-mount cap assembly can be upgraded to a billet fuel cap or an in-tank fuel cell pump module
  • 5-bolt fuel sender block-off plate can be removed and a fuel gauge tube level sender can be installed
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r12460.pdf445.82KB

Videos:

Specifications:

Emission Code 4
Material Aluminium
Part Type Fuel Cell
Product Type Fuel Cells
