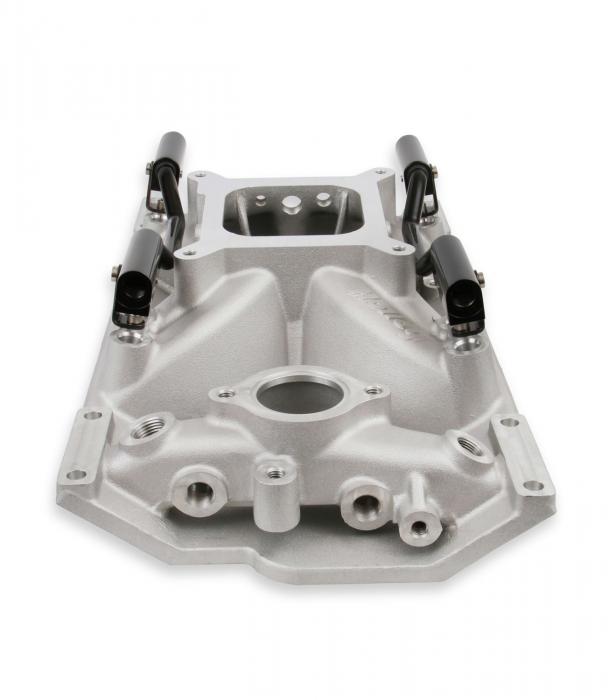

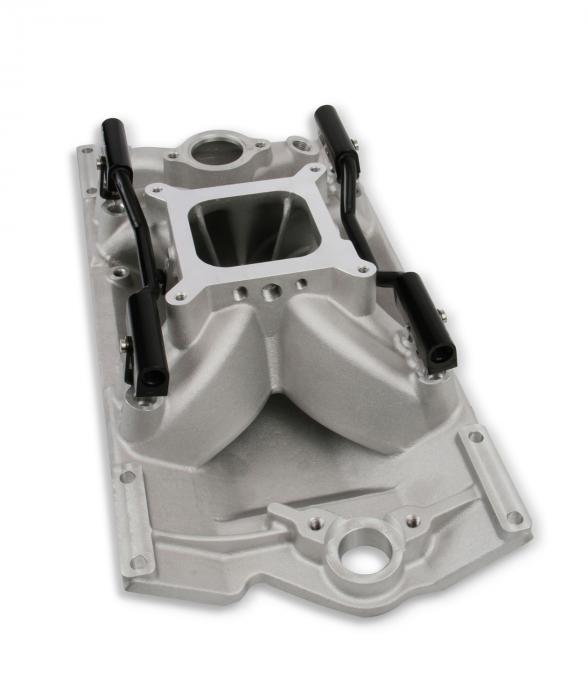

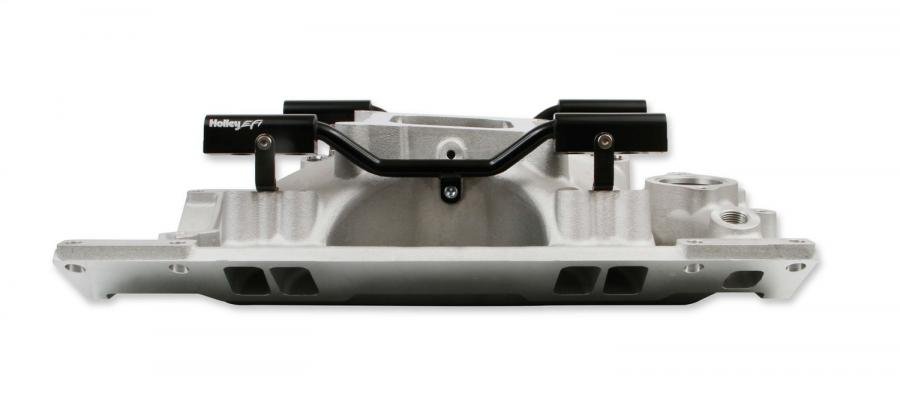

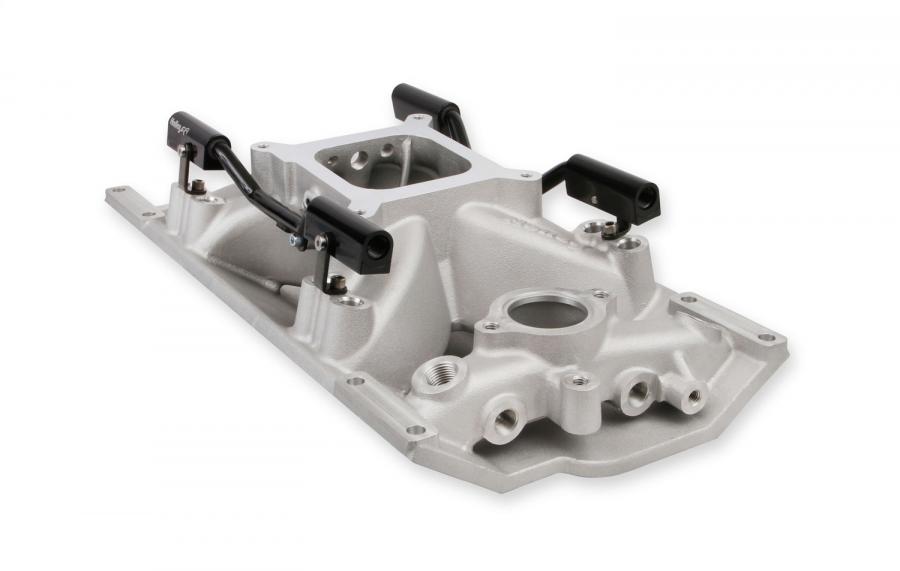

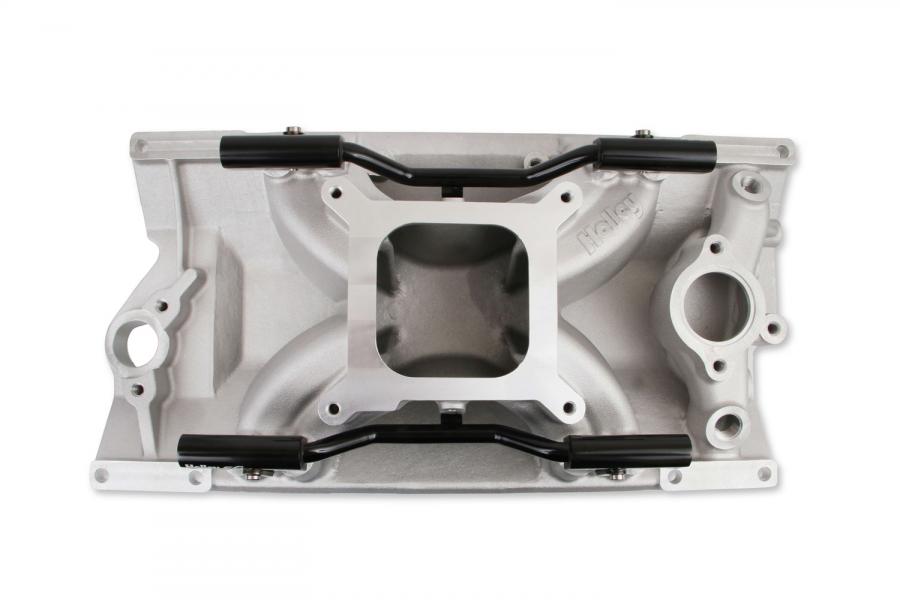

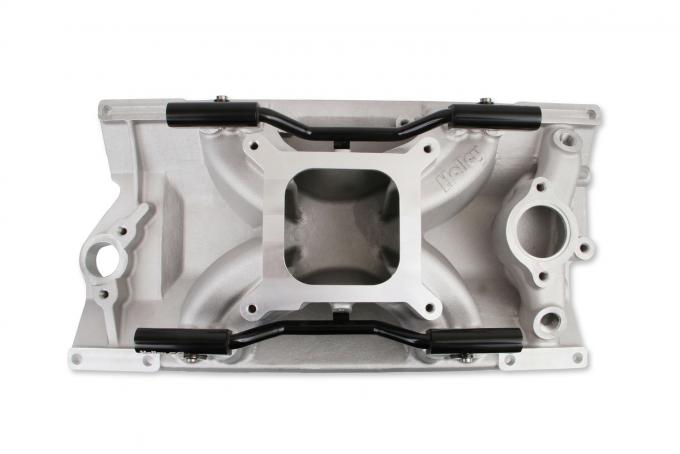

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263
Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold, Chevy Small Block V8 with L31 Vortec Cylinder Heads 300-263
$860.99 ea
NEWBackordered until 03/24/2024
Model: 4008236
STANDARD
DELIVERY
The new single plane EFI (Electronic Fuel Injection) intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style 112-587 and 112-588. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance. Its low profile and single plane design are ideal for Sniper / Terminator TBI installations (dual planes aren't ideal for EFI) Vortec Intake fits most popular GM crate engines equipped with Vortec or Fast Burn Heads including HO engines (like 350 HO), SP Series Engines (SP 350) and ZZ Series Engines (ZZ6).
Features:
  • Single plane design with isolated plenum to keep the air charge cooler
  • 4150 square bore mounting flange to adapt most aftermarket throttle body designs
  • Power band: 2500-7500 RPM

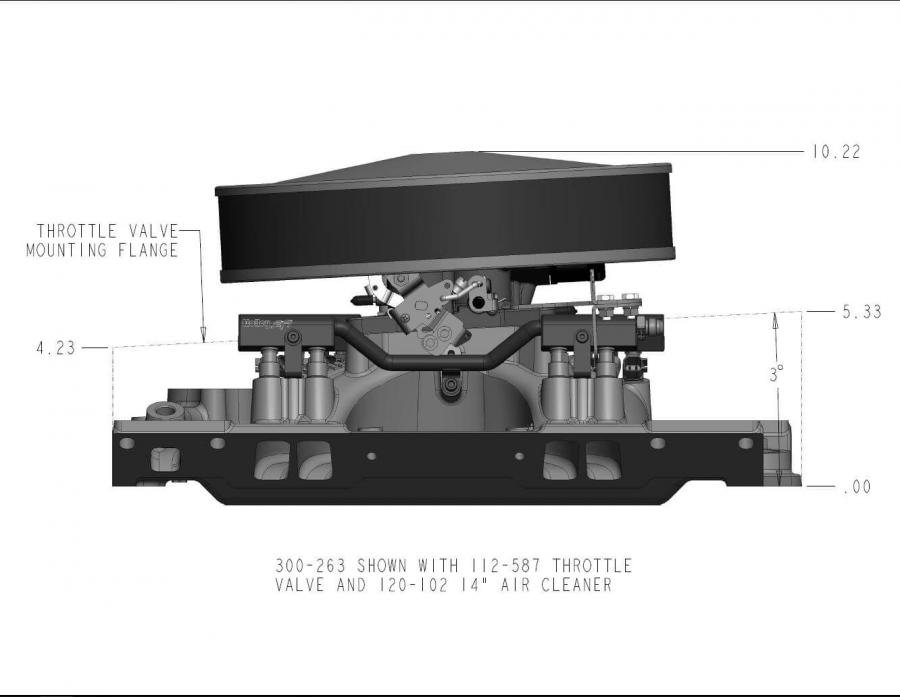

  • Height: Front 4.23", Rear 5.33"
  • Port Size: 2.05” height 1.02" width
  • Lower throttle body mounting height to help with hood clearance
  • Black coated fuel rails with bracket assortment allowing different height fuel injectors
  • Fuel injectors are not included
  • Fuel rail designed for maximum throttle lever clearance
  • Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications)
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.
Installation Notes:
Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11939.pdf587.23KB

Specifications:

Construction Cast Aluminum
Emission Code 3
Engine Chevrolet Small Block Gen I
Finish Satin
Front Height 4.18"
Fuel System Type EFI
Manifold Type High Rise
Part Type Engine Intake Manifold
Product Type EFI Intake Manifold
Rear Height 5.28"
RPM Power Band 2500-7500
Warranty Limited 90 Day
