Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair 561-130

Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair 561-130
Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair 561-130Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair 561-130Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair 561-130
$263.99 ea
NEWARRIVING SOONEstimated Ship Date 03/14/2024 (If Ordered Today)35 Available from HOLLEY PERFORMANCE PRODUCTS as of 02/21/2024
Model: 4007893
STANDARD
DELIVERY

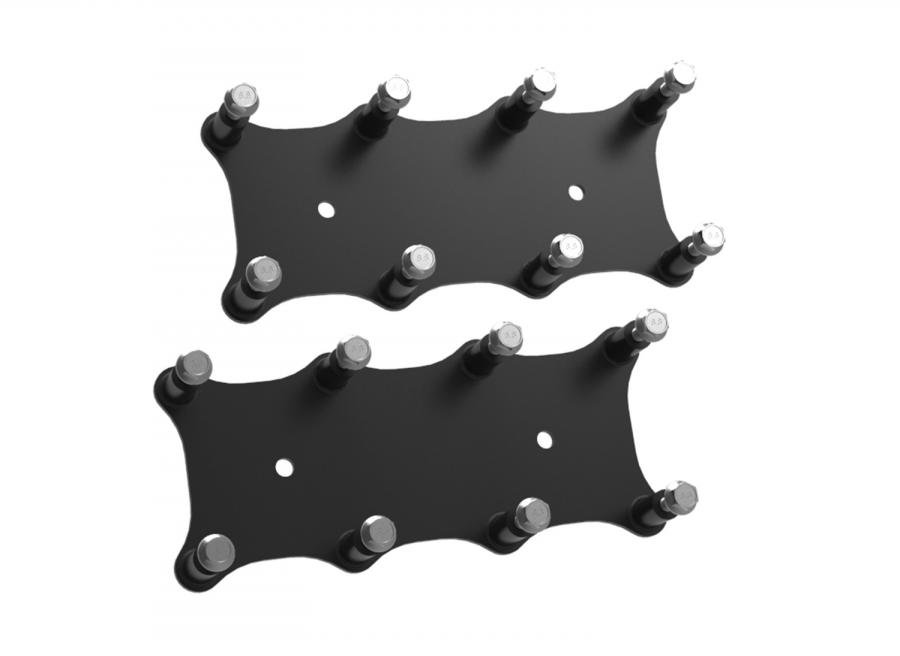

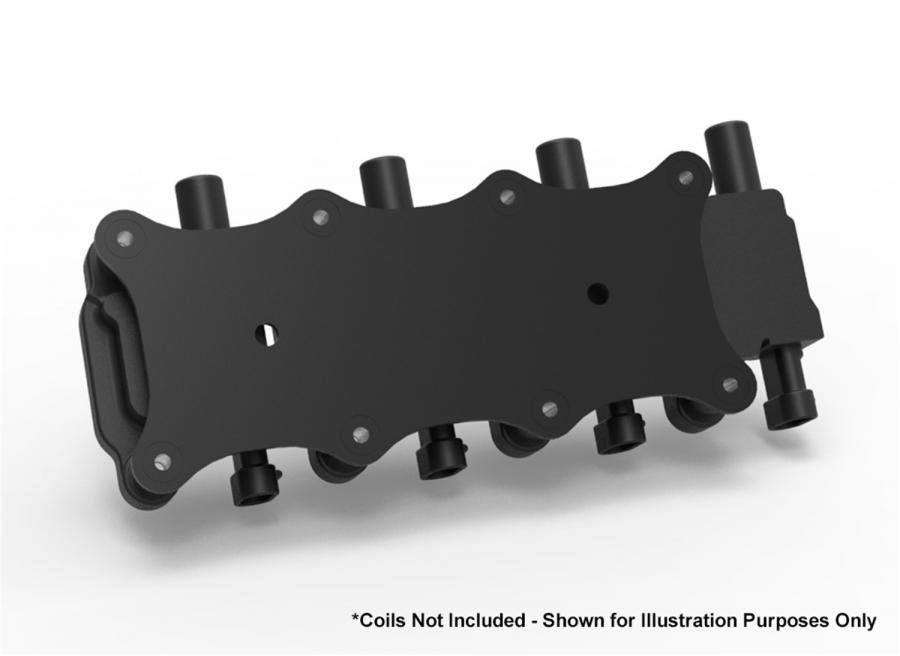

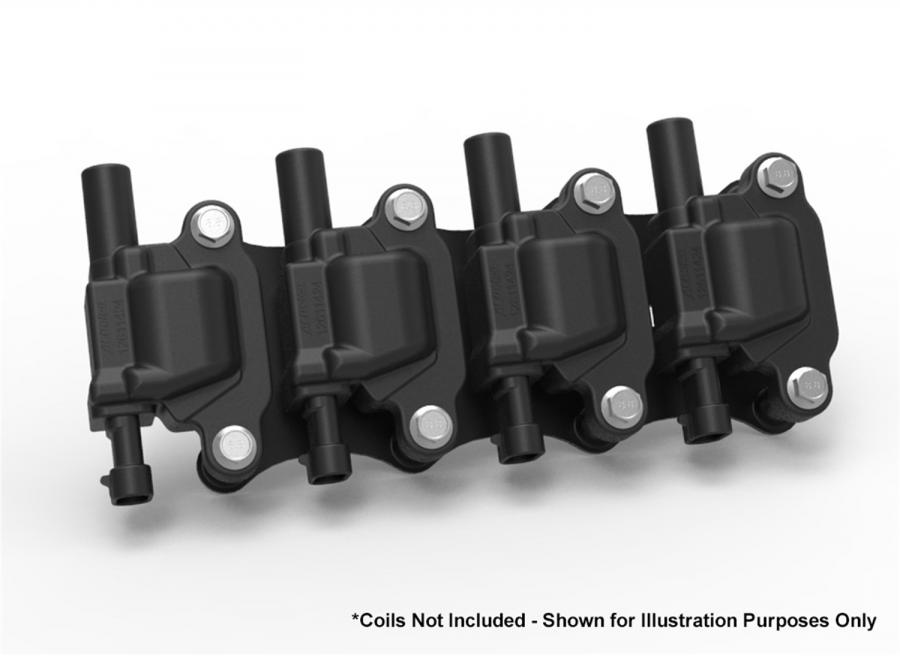

Holley is pleased to announce the arrival of our remote coil relocation brackets for all existing LS coil models, as well as for Holley EFI SmartCoils. These brackets are fabricated from lightweight aluminum and allow users to discreetly remote mount their LS engine coils at a location of their choice. Each kit was custom designed based on the specific coil model to ensure that the coils will mount as compactly as possible â€" size and shape between each kit will vary depending on the coil being used. Each kit includes two coil dependent mounting brackets (available in both natural aluminum and black) and mounting hardware for each coil.
Features:
  • Eliminates OE Coil-on-Cover clutter
  • Designed to custom fit all LS Ignition coil models
  • Fabricated from lightweight aluminum
  • Includes coil mounting hardware
  • Sold as a pair – Coils not included
  • Available in Black & Natural
Vehicle Applications: - 05-06 Chevy, Buick, Cadillac, Pontiac Cars w/ 5.3L, 6.0L, 7.0L Engines VIN Designation: M, E, C - 05-06 Chevy, GMC Trucks w/ 5.3L, 6.0L Engines VIN Designation: M, U, H
Coil Reference Numbers: GM: 12570616 AC Delco: D510C MSD: 8265 / 82658 Holley: 410004 Accel:140043 / 140043-8
Installation Notes:
Vehicle Applications: - 05-06 Chevy, Buick, Cadillac, Pontiac Cars w/ 5.3L, 6.0L, 7.0L Engines VIN Designation: M, E, C - 05-06 Chevy, GMC Trucks w/ 5.3L, 6.0L Engines VIN Designation: M, U, H
Coil Reference Numbers: GM: 12570616 AC Delco: D510C MSD: 8265 / 82658 Holley: 410004 Accel:140043 / 140043-8
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Specifications:

Coil Spacing 0.904" / 22.95mm

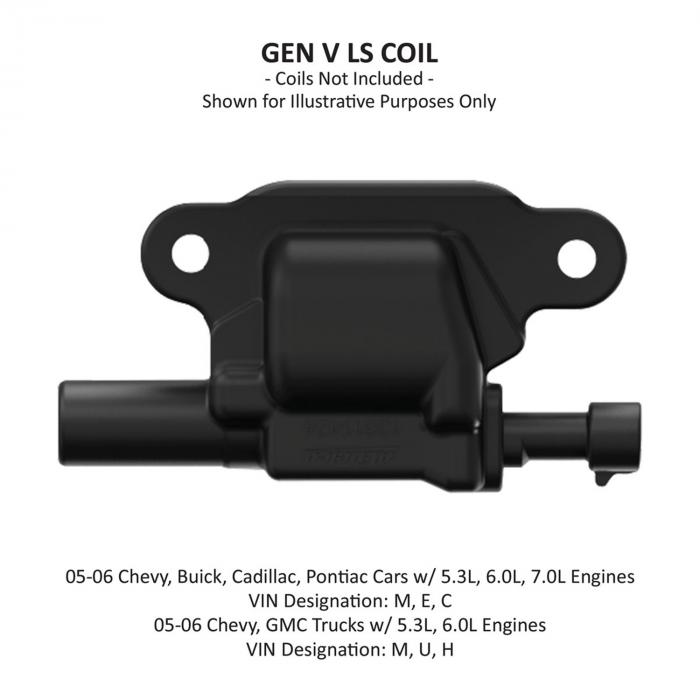

Coil Type Gen V LS Coil / D510C
Dimension A With Coils: 9.8" L x 4.3" W x 2.0" H
Dimension B Bracket Only: 8.25" L x 3.6" W x 1" H
Emission Code 5
Finish Black
Hardware Included Yes
Material Aluminum
Part Type Ignition Coil Mounting Bracket
Product Type Coil Bracket
Thread Size M6 x 1.0 x 25mm
