Holley Fuel Cell Return Fitting Kit 26-511

Holley Fuel Cell Return Fitting Kit 26-511
Holley Fuel Cell Return Fitting Kit 26-511Holley Fuel Cell Return Fitting Kit 26-511
$42.99 ea
NEWARRIVING SOONEstimated Ship Date 06/07/2024 (If Ordered Today)6 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/19/2024
Model: 4951857
STANDARD
DELIVERY
Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.
Features:
  • Effectively routes returning fuel below surface level eliminating overhead splash
  • Minimizes erratic fuel pressures caused by turbulent flow and aeration of the fuel
  • Maintains consistent fuel pressure

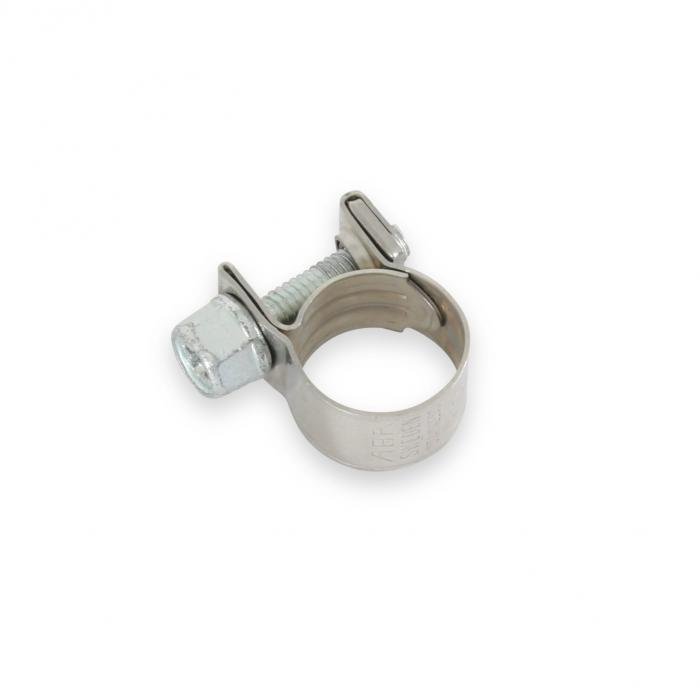

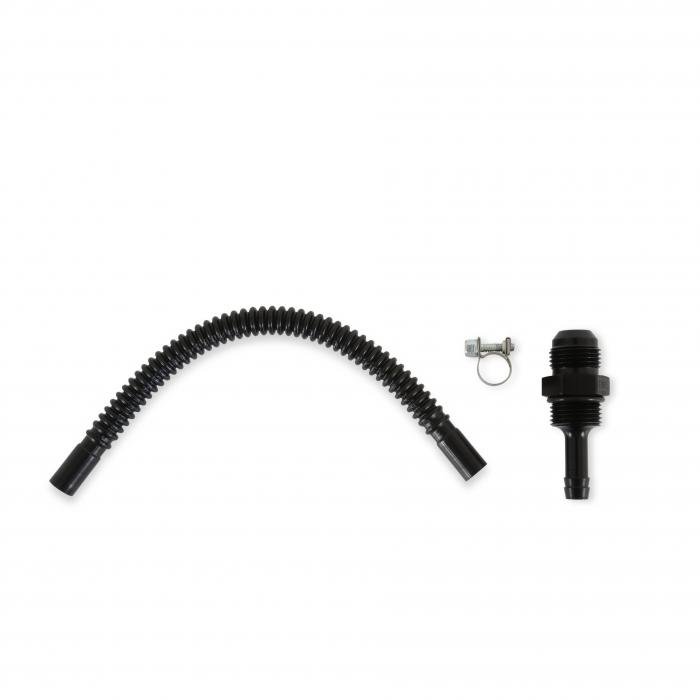

  • Comes with fitting, hose and clamp

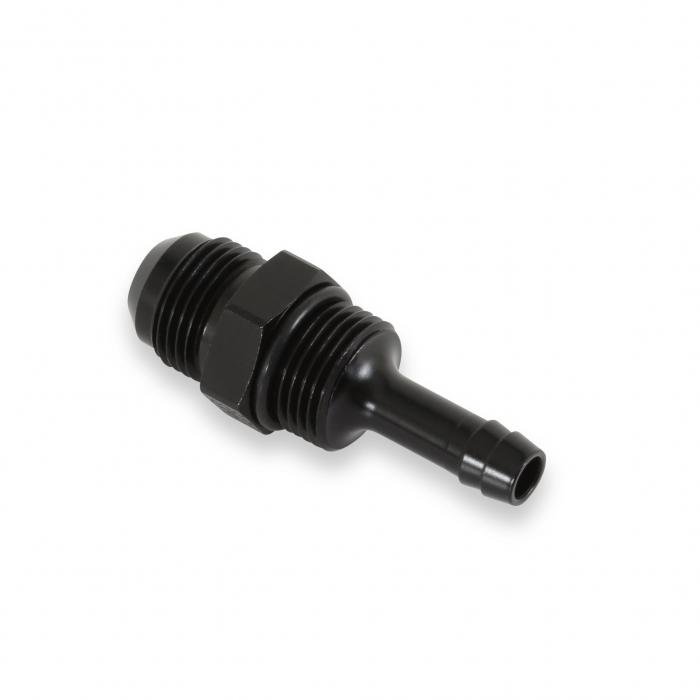

  • 10AN ORB port to 10AN male fitting made of 6061-T6 aluminum
  • Anodized fitting prevents galling of threads and corrosion protection
  • Corrugated tube is flexible to route around foam to bottom of fuel cell
  • Pump gas and E85 compatible

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r12472.pdf860.44KB

Specifications:

Emission Code 4
Hardware Included Yes
Material Aluminium
Part Type Fuel Injector Return Hose Kit
Product Type Fitting kit
