NOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOS

NOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOS
NOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOSNOS Dry Nitrous Plate System for Holley LS Hi Ram Intake Manifold, Black 05501BNOS
$2,606.99 ea
NEWOUT OF STOCK
Model: 4012783
STANDARD
DELIVERY
NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.
Features:
  • This dry single stage plate system sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
  • Designed specifically for optimum nitrous distribution on LS-based engines
  • Sprays nitrous directly into each cylinder runner for proper nitrous distribution
  • Plate features machined 0.103” passage that feeds (8) 0.040” openings per intake runner
  • Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
  • Plate is anodized black or clear for corrosion resistance and high quality appearance
  • System utilizes two NOS Pro-Race nitrous solenoids

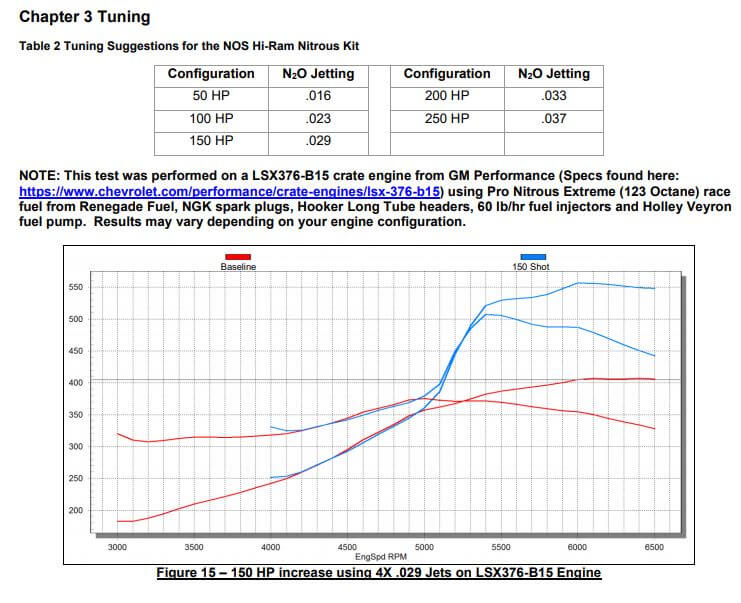

  • Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
  • Supports up to 1000+ horsepower (jets purchased separately)

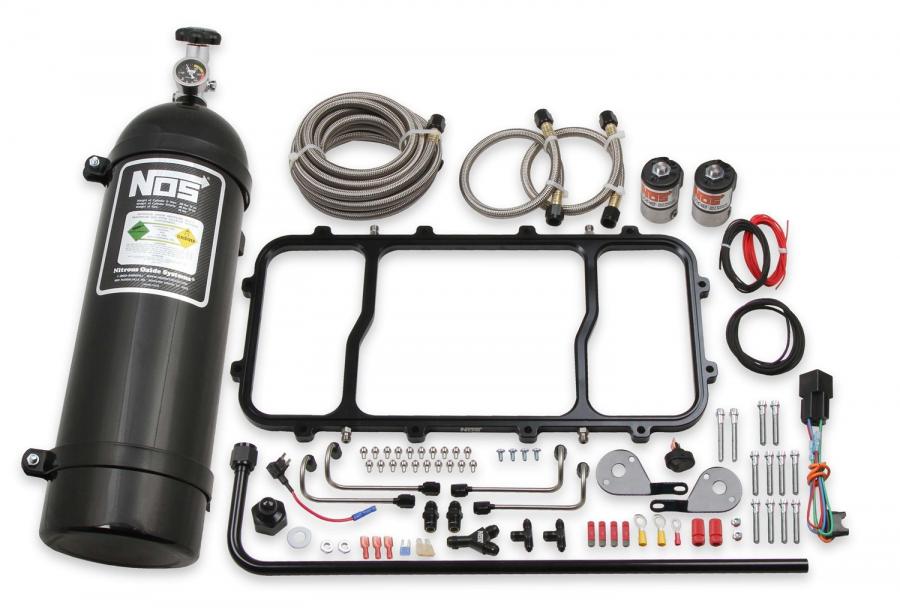

  • Includes Plate, Gasket, Hardware, Jet Holders, Solenoids, Brackets, Hose, Fittings, and Jetting for up to 250 horsepower

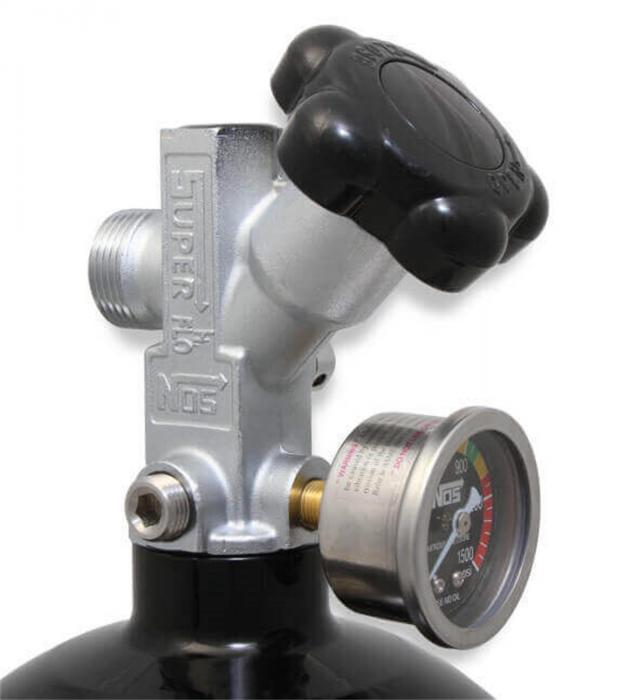

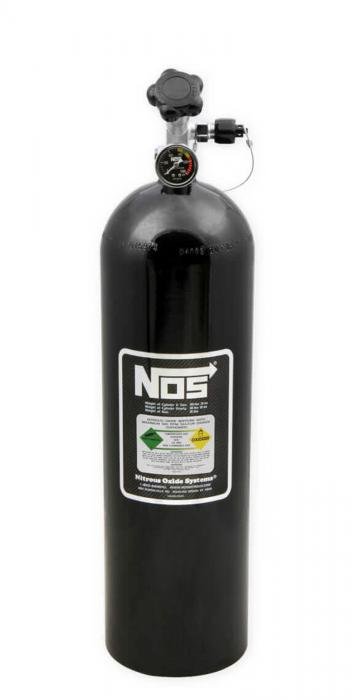

  • Systems available with 10 LB, 15 LB, or 12 LB Carbon Fiber Nitrous bottle

Downloads:

Download Name File Size
199r11650.pdf2.16MB

Specifications:

Adjustable Yes
Bottle Color Black
Bottle Included Yes
Bottle Size 15 lb
Brackets Included Yes
Delivery Style Hi-Ram Plate
Emission Code 4
Included Jetting Horsepower 50, 100, 150, 200, 250
Jet Style Flare
Material Aluminum
Max Horsepower 1000
Nitrous Solenoid Pro-Race
Number of Solenoids 2
Part Type Nitrous Oxide Injection System Kit
Plate Color Black
Plate Flange Holley Hi-Ram
Plate Height 1/2 inch
Plate Included Yes
Product Type NOS System
Proposition 65 www.P65Warnings.ca.gov
Solenoid Top Cover Color Black
System Style Dry
Warning California Proposition 68
