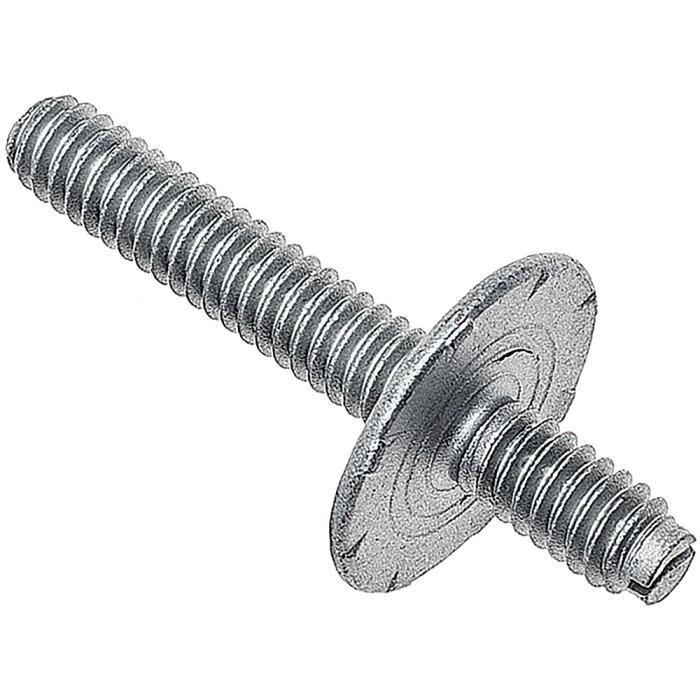

Reproduction window guide and vent window assembly mounting stud for various 1964-70 Chevrolet, Buick, Oldsmobile, and Pontiac passenger car models and various 1973-89 Chevrolet and GMC truck models. Manufactured to factory specifications, this stud is used on some models to attach the vent window assembly and on others to mount the quarter window guide. Each stud is silver zinc plated for corrosion and rust resistance.
Features and Benefits:
Manufactured to factory specifications for proper fit and function.
Used to secure vent window assemblies or quarter window guides, depending on application.
Features correct knurled 13/16" diameter washer design with dog tip point and adjuster slot on the short side of the stud.
Features 1/4-20 thread pitch; overall length measures 1-7/8".
Silver zinc plated for corrosion and rust resistance.
Precision-machined for reliable thread engagement and long service life.
Suitable for use on either LH or RH side of the vehicle.
Direct replacement for missing or damaged original studs.
Replaces GM part number 4868577.
Additional Information
Recommended
For the 2-1/2" adjustment stud, order: 4405501
For 1967-69 Camaro and Firebird quarter window adjuster stud and flange nut set, order: 153091
Fitment Note
1962-70 GM passenger car vent window applications: Check size of your original before ordering, service replacement for some models.
Buick Applications
1965 - 1969 Buick Electra
1969 - 1969 Buick GS 350
1969 - 1969 Buick GS 400
1965 - 1969 Buick LeSabre
1963 - 1970 Buick Riviera
1964 - 1969 Buick Skylark
1964 - 1969 Buick Special
1965 - 1969 Buick Wildcat
Chevrolet Applications
1963 - 1968 Chevrolet Bel Air
1963 - 1968 Chevrolet Biscayne
1967 - 1969 Chevrolet Camaro
1966 - 1966 Chevrolet Caprice
1962 - 1969 Chevrolet Corvair
1963 - 1968 Chevrolet Impala
Chevrolet Truck Applications
1973 - 1989 Chevrolet Blazer
1975 - 1986 Chevrolet C10
1973 - 1974 Chevrolet C10 Pickup
1973 - 1986 Chevrolet C10 Suburban
1985 - 1986 Chevrolet C15
1975 - 1986 Chevrolet C20
1973 - 1974 Chevrolet C20 Pickup
1973 - 1986 Chevrolet C20 Suburban
1975 - 1986 Chevrolet C30
1973 - 1974 Chevrolet C30 Pickup
1975 - 1986 Chevrolet K10
1973 - 1974 Chevrolet K10 Pickup
1973 - 1986 Chevrolet K10 Suburban
1975 - 1986 Chevrolet K20
1973 - 1974 Chevrolet K20 Pickup
1973 - 1986 Chevrolet K20 Suburban
1977 - 1986 Chevrolet K30
1973 - 1974 Chevrolet K30 Pickup
1975 - 1986 Chevrolet K5 Blazer
1987 - 1987 Chevrolet R10
1987 - 1988 Chevrolet R10 Suburban
1989 - 1989 Chevrolet R1500 Suburban
1987 - 1988 Chevrolet R20
1987 - 1988 Chevrolet R20 Suburban
1989 - 1989 Chevrolet R2500
1989 - 1989 Chevrolet R2500 Suburban
1987 - 1988 Chevrolet R30
1989 - 1989 Chevrolet R3500
1987 - 1988 Chevrolet V10 Suburban
1989 - 1989 Chevrolet V1500 Suburban
1987 - 1987 Chevrolet V20
1987 - 1988 Chevrolet V20 Suburban
1989 - 1989 Chevrolet V2500 Suburban
1987 - 1988 Chevrolet V30
1989 - 1989 Chevrolet V3500
Chevrolet Van Applications
1971 - 1972 Chevrolet G10 Van
1971 - 1972 Chevrolet G20 Van
1971 - 1972 Chevrolet G30 Van
GMC Truck Applications
1975 - 1978 GMC C15
1975 - 1978 GMC C15 Suburban
1973 - 1974 GMC C15/C1500 Pickup
1973 - 1974 GMC C15/C1500 Suburban
1985 - 1986 GMC C1500
1985 - 1986 GMC C1500 Suburban
1975 - 1978 GMC C25
1975 - 1978 GMC C25 Suburban
1973 - 1974 GMC C25/C2500 Pickup
1973 - 1974 GMC C25/C2500 Suburban
1985 - 1986 GMC C2500
1985 - 1986 GMC C2500 Suburban
1975 - 1978 GMC C35
1973 - 1974 GMC C35/C3500 Pickup
1985 - 1986 GMC C3500
1973 - 1989 GMC Jimmy
1975 - 1978 GMC K15
1975 - 1978 GMC K15 Suburban
1973 - 1974 GMC K15/K1500 Pickup
1973 - 1974 GMC K15/K1500 Suburban
1985 - 1986 GMC K1500
1985 - 1986 GMC K1500 Suburban
1975 - 1978 GMC K25
1975 - 1978 GMC K25 Suburban
1973 - 1974 GMC K25/K2500 Pickup
1973 - 1974 GMC K25/K2500 Suburban
1985 - 1986 GMC K2500
1985 - 1986 GMC K2500 Suburban
1978 - 1978 GMC K35
1973 - 1974 GMC K35/K3500 Pickup
1985 - 1986 GMC K3500
1987 - 1987 GMC R1500
1987 - 1989 GMC R1500 Suburban
1987 - 1989 GMC R2500
1987 - 1989 GMC R2500 Suburban
1987 - 1989 GMC R3500
1987 - 1987 GMC V1500
1987 - 1989 GMC V1500 Suburban
1987 - 1987 GMC V2500
1987 - 1989 GMC V2500 Suburban
1987 - 1989 GMC V3500
Oldsmobile Applications
1965 - 1965 Oldsmobile 442
1965 - 1968 Oldsmobile 98
1965 - 1968 Oldsmobile Cutlass
1967 - 1968 Oldsmobile Cutlass Supreme
1968 - 1968 Oldsmobile Delmont 88
1965 - 1966 Oldsmobile Delta 88
1965 - 1966 Oldsmobile Dynamic
1965 - 1967 Oldsmobile F85
1965 - 1966 Oldsmobile Jetstar 88
1965 - 1965 Oldsmobile Jetstar I
1965 - 1965 Oldsmobile Starfire
1965 - 1966 Oldsmobile Vista Cruiser
Pontiac Applications
1967 - 1969 Pontiac Firebird
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
