1977-91 Chevrolet/GMC 1 Ton 4WD Truck, Outer Tie Rod End

1977-91 Chevrolet/GMC 1 Ton 4WD Truck, Outer Tie Rod End
1977-91 Chevrolet/GMC 1 Ton 4WD Truck, Outer Tie Rod End1977-91 Chevrolet/GMC 1 Ton 4WD Truck, Outer Tie Rod End
$304.99 ea
NEWARRIVING SOONEstimated Ship Date 07/13/2026 (If Ordered Today)1 Available from our supplier as of 06/25/2026
Model: 3964044
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 2
STORE PICKUP
[More Info]

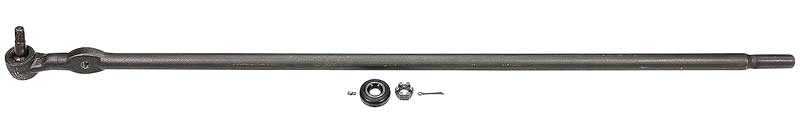

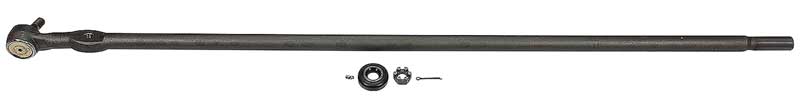

Reproduction of the original outer tie-rod end for 1976-86 Chevrolet and GMC K-Series 4WD truck models and 1987-91 V-Series 4WD models. Each outer tie rod end is manufactured to factory specifications that meet or exceed factory specifications for a ease of installation and years of trouble-free service. A front end alignment is recommended after replacing a worn or damaged tie-rod end. Fits LH driver side. One required per vehicle.

Product Specifications:
  • End 1 Thread Diameter: 1.000 IN
  • End 1 Thread Direction: Counterclockwise
  • End 1 Threads Per Inch: 18
  • End 2 Gender: Male
  • Length Stud Center to End: 50.750 IN

Application Notes: Not for 1988-91 Chevrolet or GMC C/K GMT400 Series trucks.

Chevrolet Truck Fitment Summary: 1 Ton 4WD Trucks
  • 1977-86 K30 4WD
  • 1987-88 V30 4WD
  • 1989-91 V3500 4WD
GMC Truck Fitment Summary: 1 Ton 4WD Trucks
  • 1977-78 K35 4WD
  • 1979-86 K3500 4WD
  • 1987-91 V3500 4WD
Chevrolet Truck Applications
  • 1977 - 1986 Chevrolet K30
  • 1973 - 1974 Chevrolet K30 Pickup
  • 1973 - 1991 Chevrolet Truck
  • 1987 - 1988 Chevrolet V30
  • 1989 - 1991 Chevrolet V3500
GMC Truck Applications
  • 1977 - 1978 GMC K35
  • 1973 - 1974 GMC K35/K3500 Pickup
  • 1979 - 1986 GMC K3500
  • 1973 - 1991 GMC Truck
  • 1987 - 1991 GMC V3500

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet K30 Pickup 1973 - 1974
Chevrolet K30 1977 - 1986
Chevrolet V30 1987 - 1988
Chevrolet V3500 1989 - 1991
GMC K35/K3500 Pickup 1973 - 1974
GMC K3500 1979 - 1986
GMC K35 1977 - 1978
GMC V3500 1987 - 1991

Specifications:

Height 61 in
Length 4 in
Weight 18 lbs
Width 6 in
