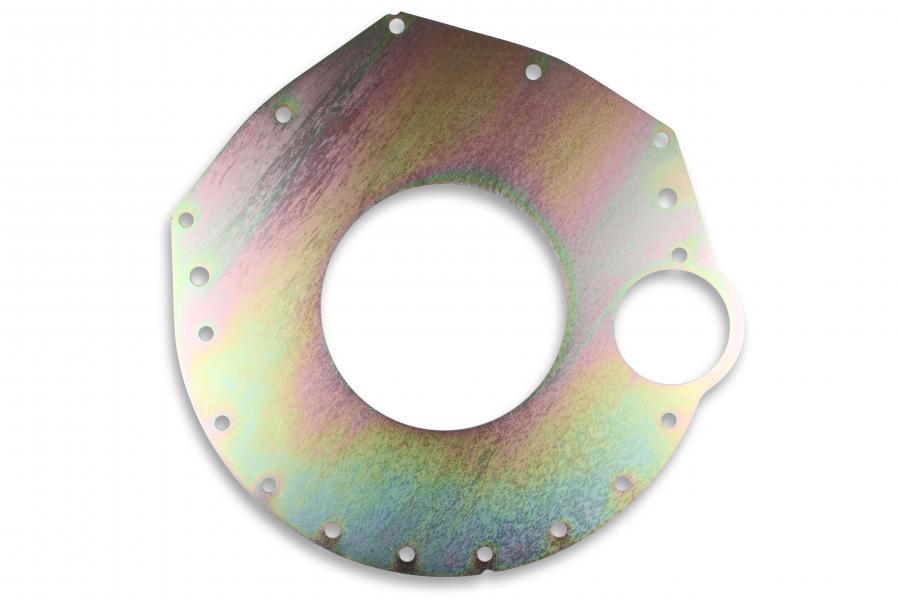

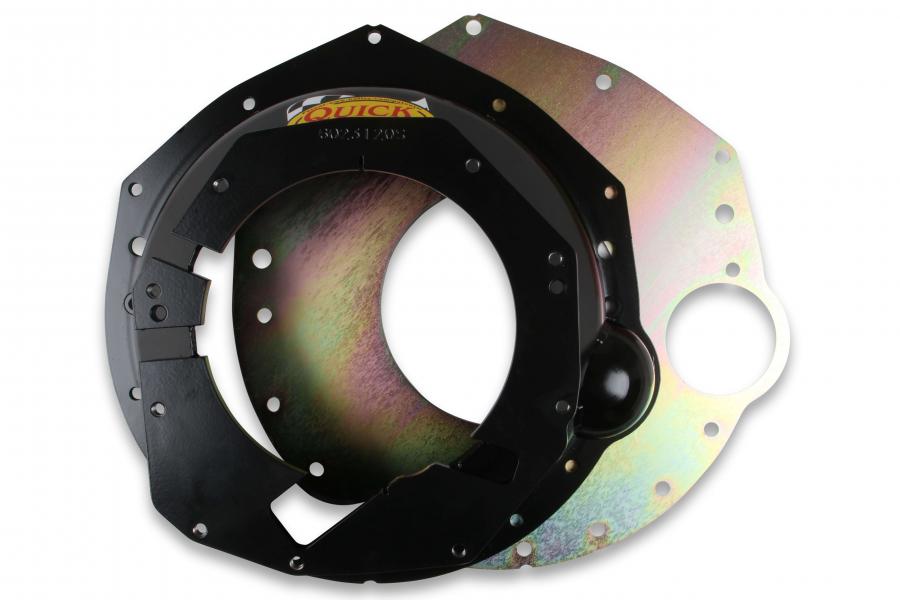

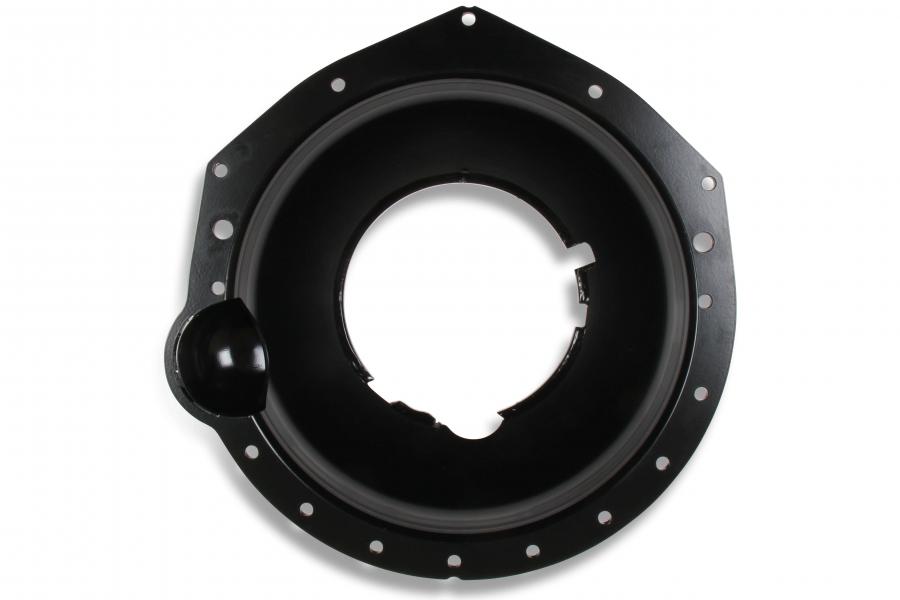

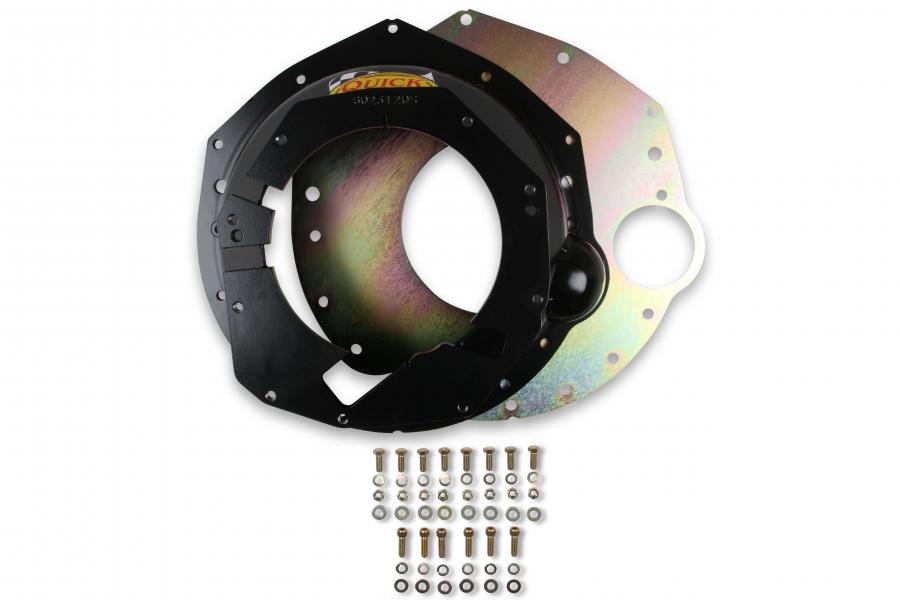

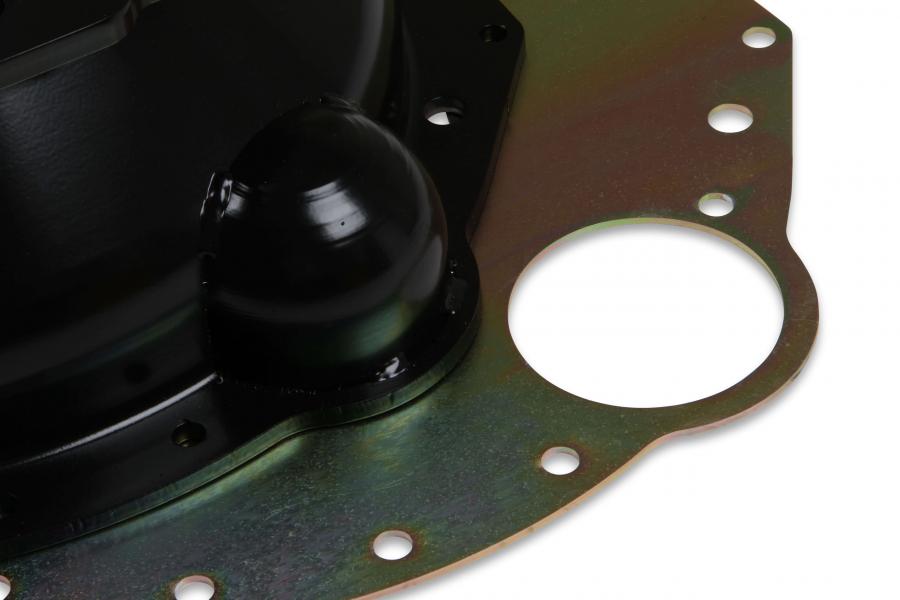

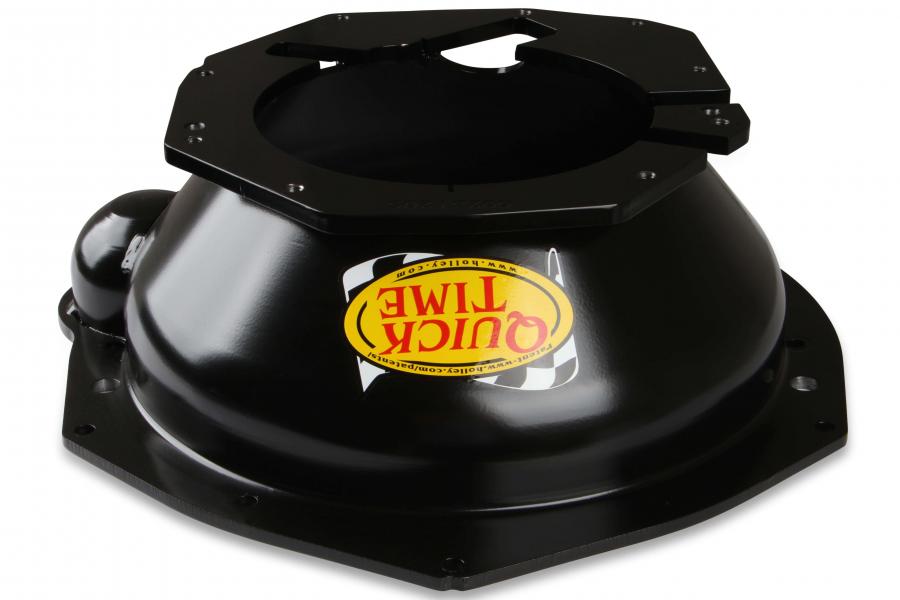

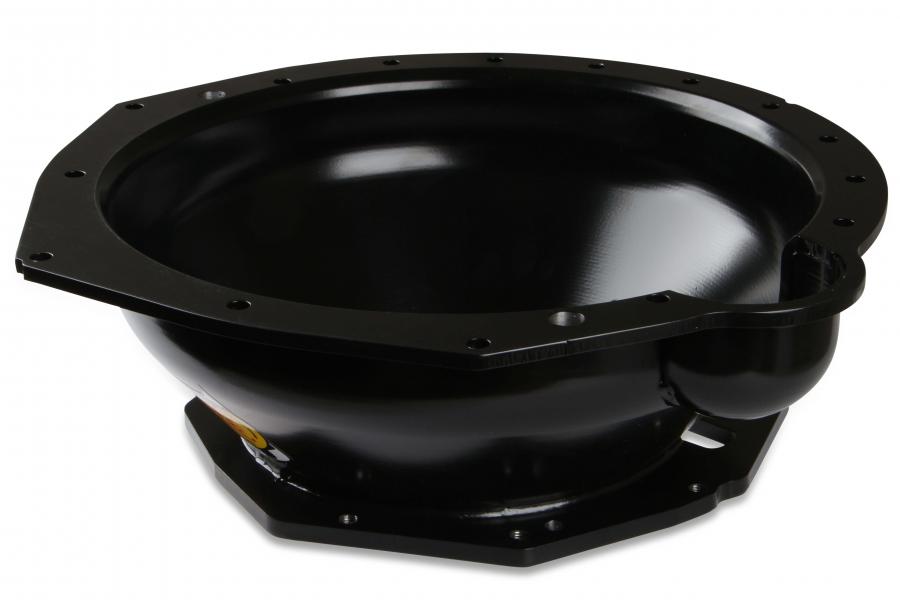

The Quick Time RM-6023 bellhousing connects a small-block or big-block Chevy engine to a GM T56, T-56 Magnum, or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Designed for Hydraulic Release Bearing only and we recommend Hays #82-120 or Holley #319-100. They use the same base part, but the Hays comes with AN fittings for the pressure and bleed ports.
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Hydraulic Release Bearing Only
Installation Notes:
Hydraulic Release Bearing Only
