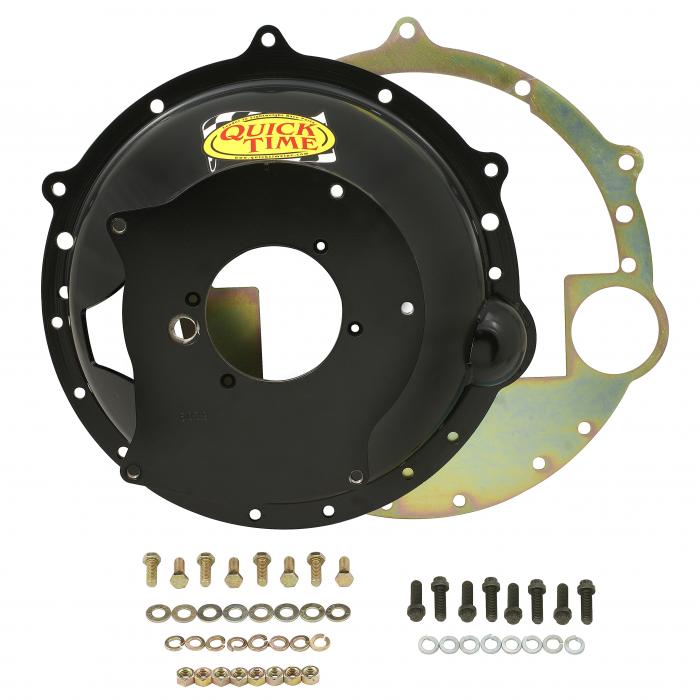

Quick Time Bellhousing, Chevy LS RM-6039

Quick Time Bellhousing, Chevy LS RM-6039
$1,530.99 ea
NEWARRIVING SOONEstimated Ship Date 05/16/2024 (If Ordered Today)11 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/25/2024
Model: 4014889
STANDARD
DELIVERY
Perfect fit for Chevy LS engines with late-model Corvette ZF 6-speed transmissions. It can also be used with late model LT1 and LT4 engines Built from high-grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Std LH Fork or Hyd. Bearing
Installation Notes:
Std LH Fork or Hyd. Bearing

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Diameter 11 inch
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine GM Small Block Gen III/IV (LS Based)
Engine Make Chevrolet
Engine Plate RM-6034-C
Flywheel 153/168 Tooth
Height 5.774 inch
Height (in) 5.774
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Starter OE
Trans Bore 4.56
Trans. Bore Diameter 4.56 inch
Transmission ZF
Transmission Type Manual
Weight 22#
Weight (lb) 22
