Racepak IQ3D Drag Logger Dash Bracket Bundle 250-KT-IQ3DBB

$3,487.99 ea

Model:	250-KT-IQ3DBB 250-KT-IQ3DBB 4015275
Condition:	NEW
Availability:	ARRIVING SOON! Estimated arrival: 06/01/2022 (If Ordered Today) 39 available from HOLLEY PERFORMANCE PRODUCTS as of 05/18/2022
Fitment:	Supplier has not provided any fitment data for this product.
Shipping Note:	Standard Delivery
Qty:

Add to Wish List Add to Compare

0 reviews | Write a Review

Can't Find your Part?

We'll find it for you. Give us a call at 855.444.6872 and we'll source that discontinued or hard to find part.

Why Choose Us?

No Brokerage or Duties - Canadian Owned & Operated - Shipped from Canada to your Door - Easy to Navigate Website - Access to New, Used & Discontinued Parts - Full Time Staff to Answer your Questions.

Disclaimer

Muscle Cars & Classics always recommends professional installation of our products. Buyer assumes risk of damage caused by improper installation.

Description Downloads Video Specifications Reviews (0) Product Q&A

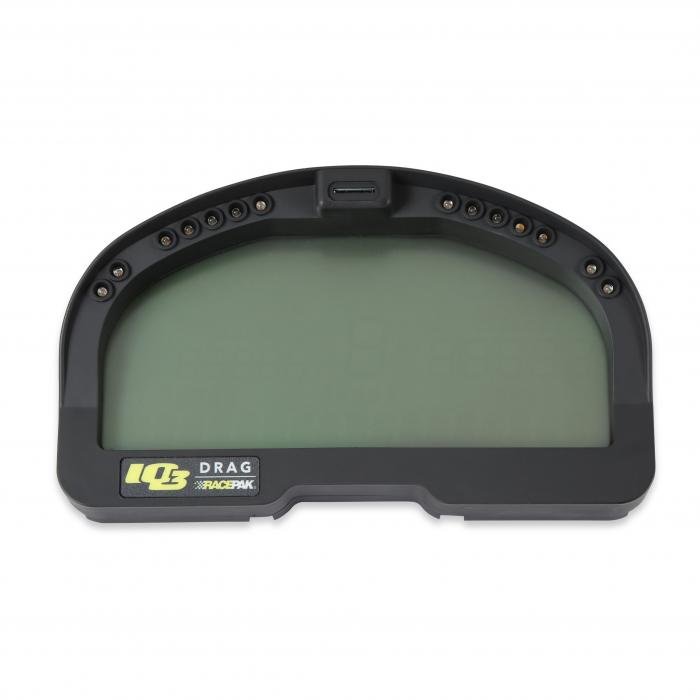

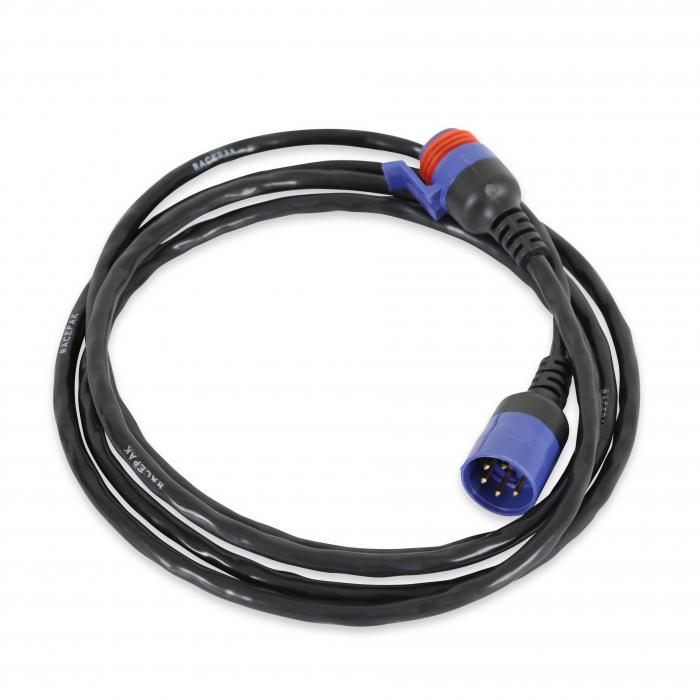

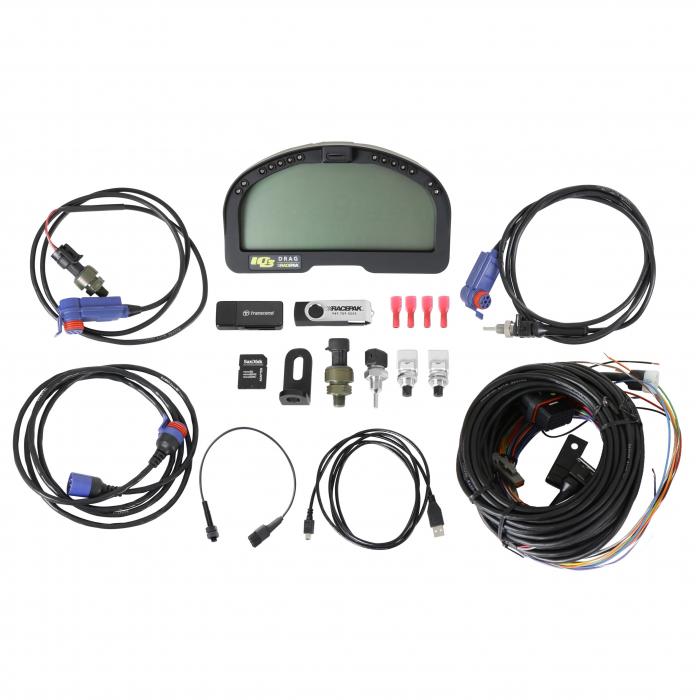

The IQ3D Drag Logger Dash is the perfect solution for the sportsman drag racer looking for instrumentation and data logging in one convenient package. Now, Racepak makes it even easier for today's bracket racers. The IQ3D Bracket Bundle combines an IQ3D Drag Logger Dash with the most common V-Net modules used by bracket racers. The IQ3D already includes sensors for oil pressure and water temperature. The bundle adds V-Net modules for carburetor pressure and transmission temperature, along with a 72" V-Net cable to connect the modules to the dash. The IQ3D Drag Logger Dash features four user-definable pages of data, along with programmable shift lights and warning lights. It can also connect to most CAN based EFI and ECU systems with a single cable. Data is recorded on a microSD memory card located on the face of the dash for easy access.

Features:

Records Engine and Driveshaft RPM/Oil PSI/Water Temp
Records Battery Voltage/12V Event
Displays Up To 28 Inputs Via 4 Pages MicroSD Memory Card
Blue Dimmable Backlight
Four User Defined Alarms
User Defined 5 Character Sensor Input Names
Programmable Shift Light Output For Up To 6 Shift Points
Shielded Low Luster Display For Sunlight Viewing
Connects To Over 20 Aftermarket EFI Products
Shock Travel Upgrade Package Available
V-Net 0-15 lbs. Carburetor Pressure Models
V-Net Transmission Pressure Module

Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations

Installation Notes:

Compatible ECU systems include the following: AEM V2/EMS-4/Infinity EMS Big Stuff 3 Electromotive TECGT EMS EM-Tech ECU Emtron ECU FAST XFI Fuel Tech (200,250,300,350,500v1,500v2, 600) Holley Dominator InjPro Life Racing F88 Link G4+ Series MaxxECU MEFI-4B MegaSquirt-III (DIY Autotune) MicroTech MoTeC CAN (Data set 3) MSD Atomic LS MSD Atomic TBI OBD-II (2008 and later) Pro EFI User Configured (CAN bus knowledge required)

About Racepak

Our unwavering goal to produce reliable, efficient, state of the art data recorders, at a price accessible to professionals and sportsmen alike, and back them with whatever service our customers may need, is as strong today as it was in 1984.

Downloads:

Download Name	File Size
techlibrary_iq3drv2.12.zip	218.95KB
techlibrary_iq3d_iq3s_mounting_template.pdf	571.03KB
techlibrary_iq3dr_firmware_update_instructions.pdf	81.93KB
techlibrary_iq3d_firmware_revision_log.pdf	116.58KB

Videos:

Application	Drag Racing
Emission Code	5
Operating Voltage	12-18 volts
Part Type	Data Logging Unit
Start Record Method	Momentary Button
WARNING CA Proposition 65	WARNING: Cancer and Reproductive Harm
