| Compressed Height | Ride Height | Extension | Stroke | Mounting | Part # |
|---|---|---|---|---|---|
| 10.75″ | 12.83″ | 14.22″ | 4.1″ | Eye / Eye | 21140701 |
| 11.05″ | 13.13″ | 14.52″ | 4.1″ | Stud / Eye | 21140705 |
| 11.85″ | 14.6″ | 16.42″ | 5.2″ | Eye / Eye | 21150701 |
| 12.15″ | 14.9″ | 16.72″ | 5.2″ | Stud / Eye | 21150705 |
| 12.95″ | 16.35″ | 18.62″ | 6.3″ | Eye / Eye | 21160701 |
| 13.25″ | 16.65″ | 18.92″ | 6.3″ | Stud / Eye | 21160705 |
| 13.75″ | 17.51″ | 20.02″ | 6.9″ | Eye / Eye | 21170701 |
| 14.05″ | 17.81″ | 20.32″ | 6.9″ | Stud / Eye | 21170705 |

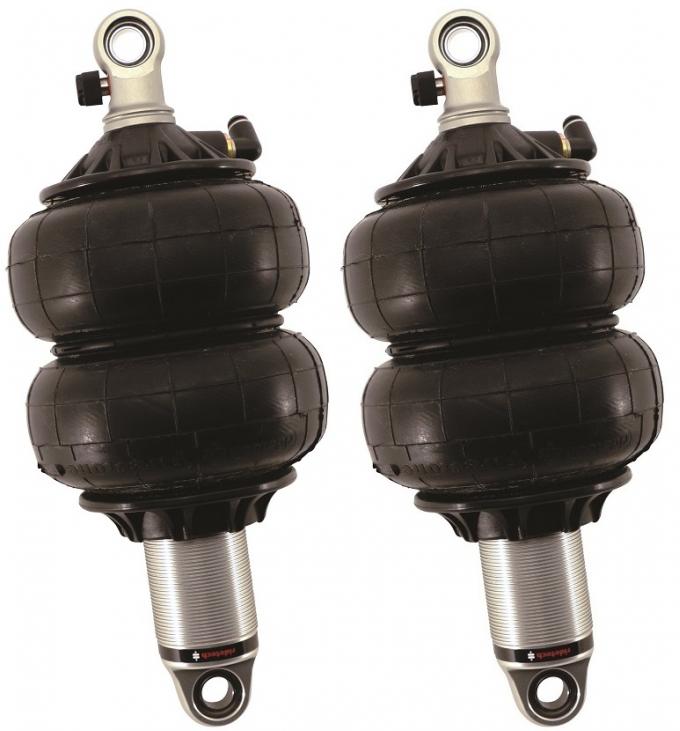

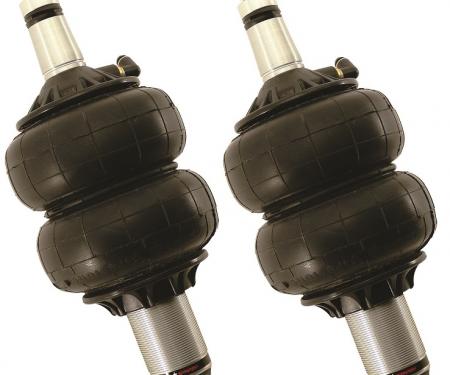

Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work with just about whatever setup you’re using. Whether you’re replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.
Recommended Applications:Solid rear axle: Rear axle weight is less than 1,500lbs. NOT recommended for IFS installations … not enough load capacity
Diameter and load capacity:4″ diameter 7000 series = 780 lbs. @ 100 psi
Handling Quality Series
The Handling Quality (“HQ”) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
| Download Name | File Size |
| eye_eye_instructions_211x0701_211x0801_web.pdf | 2.42MB |
| stud_eye_instructions_211x0705_211x0805_web.pdf | 2.38MB |
| Make | Model | Years |
| Chevrolet | Bel Air | 1955 - 1957 |
| Chevrolet | One-Fifty Series | 1955 - 1957 |
| Chevrolet | Two-Ten Series | 1955 - 1957 |
| Dodge | Challenger | 1970 - 1974 |
| Plymouth | Barracuda | 1970 - 1974 |
| Plymouth | Cuda | 1970 - 1974 |
| Part Type | Air Suspension Kit |
| Pricing Group | HQ Shockwaves |
| Prop 65 Chemicals | chromium,lead,lead_compounds,nickel,nickel_acetate,nickel_compounds,toluene |
| Proposition 65 Warning | Y |
| Warranty Time | 1 Months |
